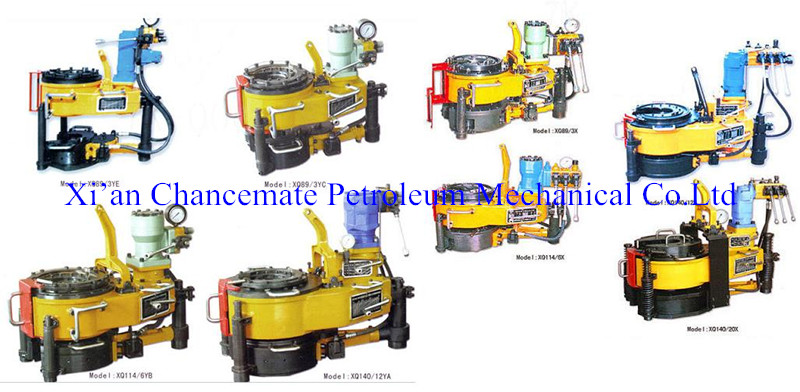

tubing power tong-Hydraulic tubing power tong
Features of tubing power tong-Hydraulic tubing power tong
XQ series of hydraulic power tong (XQ series hydraulic tubing power tong ) is used for quick make-up/break-out in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. The tongs have the following features:
¨ Clamp the tubing use corresponding dies, jaw set or die seat.
¨ Torque control valve may be equipped according to customer’s request.
¨ Choose and buy lengthening guide pole assembly, the backup tong can clamp the pipe.
¨ Torque Control System may be equipped according to customer’s request.
Remark: 1, To clamp the 23/8" tubing , special dies must be ordered for Model XQ89/3B,3C;
Technical Specifications of XQ series of hydraulic power tong (XQ series hydraulic tubing power tong )
|
Model |
XQ89/3Y3YC |
XQ114/6YB |
XQ140/12Y |
XQ140/12Y-T |
||
|
Applicable range main tong |
mm |
60-89 |
60-114 |
60-140 |
48-140 |
|
|
in |
23/8～31/2 |
23/8～41/2 |
23/8～51/2 |
1.9～51/2 |
||
|
Applicable range backup tong |
mm |
60-114 |
73-141.5 |
73-156 |
60-156 |
|
|
in |
27/8～41/8 |
27/8～51/8 |
27/8～61/8 |
23/8～61/8 |
||
|
Hi-gear rated tofque |
kN.m |
1100 |
1500 |
2600 |
2600 |
|
|
ft.lbf |
811 |
1106 |
1918 |
1918 |
||
|
Lo-gear rated tofque |
kN.m |
3300 |
6000 |
12000 |
12000 |
|
|
ft.lbf |
2213 |
4425 |
8851 |
8851 |
||
|
Ratek Speed |
High gear |
rpm |
90 |
85 |
72 |
72 |
|
Low gear |
rpm |
30 |
20 |
14 |
14 |
|
|
Rated pressure |
MPa |
10 |
11 |
12 |
12 |
|
|
psi |
1450 |
1595 |
1740 |
1740 |
||
|
Max.oil supply |
L/min |
80 |
100 |
120 |
120 |
|
|
gpm |
21 |
26 |
32 |
32 |
||
|
Size |
mm |
650×430×550 |
750×500×600 |
1024×582×539 |
1050×620×900 |
|
|
in |
25.6×16.9×21.7 |
29.5×19.7×23.6 |
40.3×22.9×21.2 |
41.3×24.4×35.4 |
||
|
Weight |
kg |
158 |
220 |
480 |
480 |
|
|
lb |
348 |
485 |
1060 |
1060 |
||
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
|
|
|
|
