Type ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong)
Specifications of Type ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong)

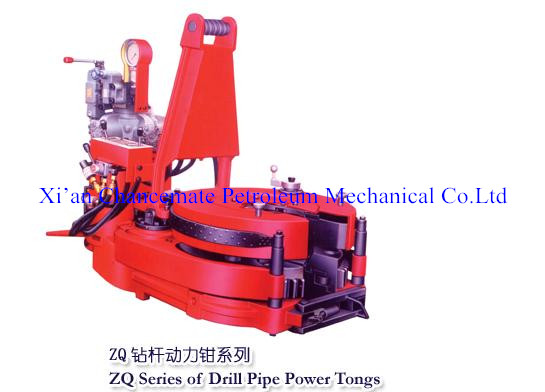

Type ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong)
1. Type: Type ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong)
2. Model: ZQ127-25, ZQ162-50, ZQ203-100, ZQ203-100II, ZQ203-100III, ZQ203-125I
3.Size range: 65mm--127mm
4.Standard: API 7K
API 7k Type ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong)
1. ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong) is a ideal well head tool for oil drilling apparatus,
2. Widely applied in making-up and breading-out in drilling well and repairing well on offshore and land, open-throat design of the ZQ series allows the tongs to escaping from drilling pipe freely with high mobility.
3. The tong is a combination of spinning tong and torque tong. It substitutes cathead manual tong and spinning rope in making-up and breaking-out.
4. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.
Detailed size of Type ZQ drill pipe power tong (ZQ drill pipe hydraulic power tong)
|
Model |
ZQ203-125I |
ZQ203-100 |
ZQ203-100II |
ZQ203-100III |
ZQ162-50 |
ZQ127-25 |
|
|
Size range |
mm |
127-203 |
127-203 |
127-203 |
127-203 |
85-162 |
65-127 |
|
in |
31/2coupling-8body |
31/2coupling-8body |
31/2coupling-8body |
31/2coupling-8body |
23/8coupling-5body |
23/8coupling-31/2body |
|
|
Max. torque |
kN.m |
125 |
100 |
100 |
100 |
50 |
25 |
|
ft.lbf |
92200 |
73750 |
73750 |
73750 |
36880 |
18440 |
|
|
The speed of tong head Hi. |
rpm |
40 |
40 |
40 |
40 |
60 |
65 |
|
The speed of tong head Lo. |
rpm |
2.7 |
2.7 |
2.7 |
2.7 |
4.1 |
10.5 |
|
Hydraulic system pressure rating |
MPa |
20 |
16.6 |
16.6 |
16.6 |
16 |
12 |
|
psi |
2900 |
2400 |
2400 |
2400 |
2320 |
1740 |
|
|
Hydraulic system flow rating |
L/min |
114 |
114 |
114 |
114 |
120 |
180 |
|
gpm |
30 |
30 |
30 |
30 |
32 |
48 |
|
|
Stroke of shifting sylinder |
mm |
1500 |
1500 |
1500 |
|
1000 |
1000 |
|
in |
59 |
59 |
59 |
|
39.4 |
39.4 |
|
|
Moving distance of tong |
mm |
|
|
|
0-1500 |
|
|
|
in |
|
|
|
0-59 |
|
|
|
|
Lifting distance of tong |
m |
|
|
0-485 |
0-800 |
|
|
|
in |
|
|
0-19 |
0-31.5 |
|
|
|
|
Overall dimensions |
mm |
1720*1050*1750 |
1700*1000*1400 |
1700*1000*1400 |
1750*1650*2050 |
1570*800*1190 |
1110*790*820 |
|
in |
68*41*69 |
67*39*55 |
67*39*55 |
69*65*81 |
62*31*47 |
44*31*32 |
|
|
Weight |
kg |
2600 |
2400 |
2500 |
3250 |
1500 |
620 |
|
lb |
573 |
5290 |
5510 |
7165 |
3310 |
1360 |
|
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
|
|
|
|
