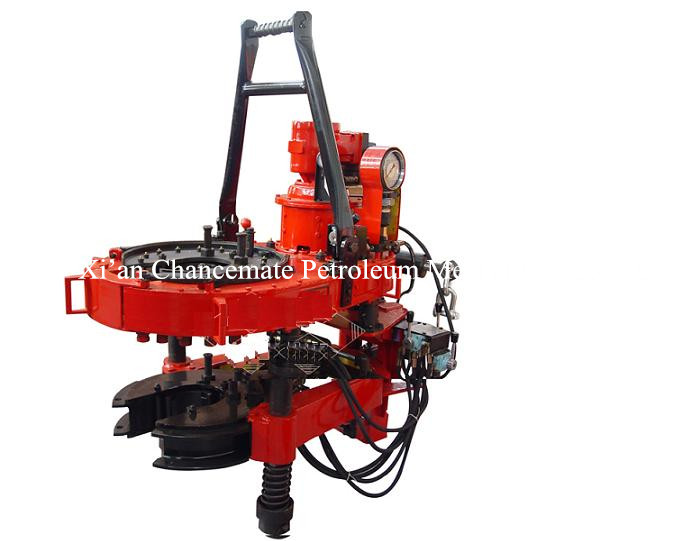

TB casing back-up tong
TB casing back-up tong
TB casing back-up tong is a patented product, used to perform casing operation by combined with casing power tong and can ensure connection quality and eliminate deformation of main tong under large torque .TB casing back-up tong features safety, reliability, labor-saving, and high efficiency. There are two control style: pneumatic and hydraulic. The back-up tong is supplied with a torque sensor to measure precisely connection torque. The tong is designed and manufactured according to Industrial standard SY/T5074 and API Spec 7K “Specification for Drilling Equipment”.
Detailed size of TB casing back-up tong
|
Model |
TB194--16 |
TB365-35 |
TBH178-16S |
TB365-35Y |
|
|
Size range |
mm |
120.6～194 |
127～365 |
140～178 |
127～365 |
|
in |
4～7coupling |
41/2～133/8coupling |
51/2～7 |
41/2～133/8coupling |
|
|
Air pressure |
MPa |
0.5～0.9 |
0.5～0.9 |
0.5～0.9 |
— |
|
psi |
72～130 |
72～130 |
72～130 |
||
|
Hydraulic pressure rating |
MPa |
— |
— |
— |
18 |
|
psi |
2610 |
||||
|
Max.bearing torque |
kN.m |
16 |
35 |
16 |
35 |
|
ft.lbf |
11800 |
25810 |
11800 |
25810 |
|
|
Size |
mm |
1310×780×390 |
1510×945×405 |
1080×1080×350 |
1350×950×350 |
|
in |
51.6×30.7×15.4 |
59.4×37.2×16 |
42.5×42.5×13.8 |
53.1×37.4×13.8 |
|
|
Weight |
kg |
360 |
480 |
1320 |
520 |
|
lb |
790 |
1060 |
2910 |
1140 |
|
