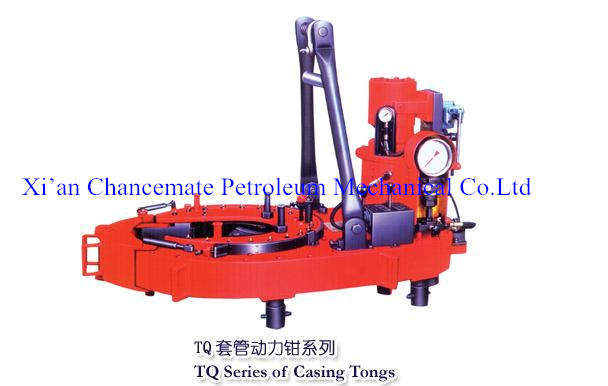

TQ series casing tong (TQ series casing hydraulic power tong )
TQ series casing tong (TQ series casing hydraulic power tong ) is a special equipment for elevating and break out all kinds casings, it has the following features:
Design is excellent, clamp is reliable and no slipping.
Brake by belt and adopt upper and lower centralizing mechanism.
Powered by hydraulic source with two gear rotation speed and adopted gear shifting.
The torque automatic control system is optional, the effect would be better if installed torque automatic control system
Technical Parameters of TQ series casing tong (TQ series casing hydraulic power tong )
|
Model |
TQ178-16 |
TQ178-16Y |
TQ340-35 |
TQ340-35Y |
TQ356-55 |
TQ356-55Y |
TQ508-70Y |
TQ340-85Y |
||
|
Size range |
mm |
101.6～178 |
101.6～178 |
114.3～340 |
114.3～340 |
114.3～356 |
114.3～356 |
114.3～340 |
114.3～340 |
|
|
in |
4～7 |
4～7 |
41/2～133/8 |
41/2～133/8 |
41/2～14 |
41/2～14 |
95/8～20 |
41/2～133/8 |
||
|
Max. Pressure |
MPa |
18 |
16 |
18 |
20 |
16.6 |
20 |
20 |
18 |
|
|
psi |
2610 |
2320 |
2610 |
2900 |
2400 |
2900 |
2900 |
2610 |
||
|
Flow Working |
L/min |
110～160 |
110～160 |
110～160 |
110～170 |
110～140 |
110～170 |
110～170 |
110～170 |
|
|
gpm |
29.3～42.7 |
29.3～42.7 |
29.3～42.7 |
29.3～45.4 |
29.3～37.3 |
29.3～45.4 |
29.3～45.4 |
29.3～45.4 |
||
|
Air pressure |
MPa |
0.5～0.9 |
— |
0.5～0.9 |
— |
0.5～0.9 |
— |
— |
— |
|
|
psi |
72～130 |
72～130 |
72～130 |
|||||||
|
Max. |
Hi. gear |
kN.m |
2.4～3 |
2.4～3 |
2.5～3 |
3.5～6 |
3.8～4.2 |
7 |
8.4～10.7 |
12.5～14 |
|
ft.lbf |
1770～2210 |
1770～2210 |
1844～2210 |
2580～4425 |
2800～3100 |
5160 |
6190～7890 |
9220～10325 |
||
|
Mid.gear |
kN.m |
— |
— |
6.0～7.5 |
— |
— |
— |
— |
— |
|
|
ft.lbf |
4425～5530 |
|||||||||
|
Low gear |
kN.m |
14.5～17.5 |
16～19 |
32～40 |
22～37 |
53～58 |
57 |
48.9～70.5 |
85～90 |
|
|
ft.lbf |
10694～12900 |
11060～13270 |
23600～29500 |
16225～27285 |
39080～42775 |
42030 |
37244～52000 |
62690～66375 |
||
|
Speed |
Hi. gear |
rpm |
54～79 |
50～72 |
60～86 |
50～90 |
56～70 |
39.4～60.9 |
26～43.6 |
30～45 |
|
Mid.gear |
rpm |
— |
— |
21～30 |
— |
— |
— |
— |
— |
|
|
Low gear |
rpm |
9～13.1 |
9～13 |
3.6～5.3 |
8～14 |
4～5 |
4.8～7.4 |
4～6.6 |
3.2～5 |
|
|
Lifting distance |
mm |
— |
— |
— |
622 |
— |
615 |
622 |
622 |
|
|
in |
24.5 |
24.2 |
24.5 |
24.5 |
||||||
|
Size |
mm |
1450×760 |
1500×760 |
1580×900 |
1580×900 |
1770×960 |
1770×960 |
2080×1280 |
1995×1150 |
|
|
in |
57×30 |
59×30 |
62.2×35.4 |
62.2×35.4 |
69.7×37.8 |
69.7×37.8 |
82×50.4 |
78.5×45.3 |
||
|
Weight |
kg |
580 |
560 |
780 |
760 |
1150 |
1100 |
1550 |
1700 |
|
|
lb |
1280 |
1230 |
1720 |
1670 |
2530 |
2420 |
3410 |
3740 |
||
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
|
|
|
|
