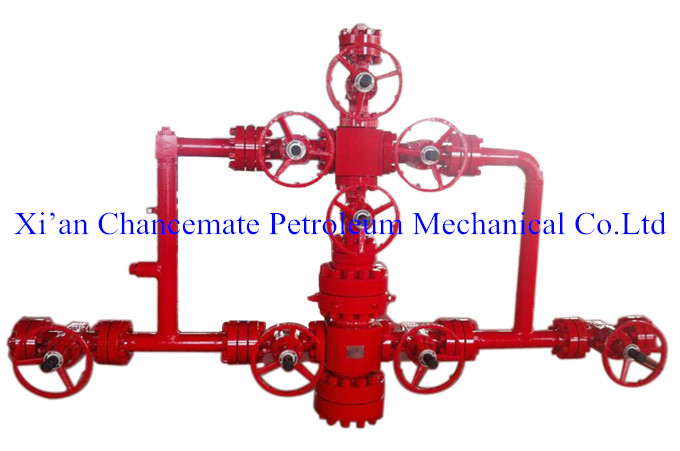

API 6A Geothermal and steam injection wellhead

API 6A Geothermal and steam injection wellhead is suitable for heavy oil, super heavy oil production by steam injection

Features of API 6A Geothermal and steam injection wellhead

 ·Equipped with a steam injection pipe, steam injection can realize positive cycle and reverse circulation;
·Valve sealing parts and hanger are metal sealing, good sealing performance, long service life;
·The main parts made of forging alloy steel for high performance, safe and reliable work;
·Design according to API 6A standard, has good interchangeability.


Detailed specifications of API 6A Geothermal and steam injection wellhead

·Working pressure:2000PSI~5000PSI
·Nominal diameter: 2-1/16”~4-1/16”
·Temperature rating:-18°C~180°C(X Grade),-18°C~345°C(Y Grade)
·Material class:AA,BB,CC,DD,EE,FF,HH
·Product specification level:PSL1~4
·Performance requirment:PR1~2
·Working medium:Heavy oil, high saturated steam

Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
