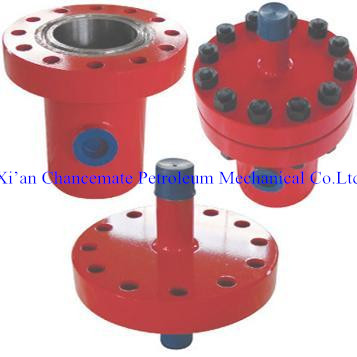

Product pictures of Multi-Bowl Wellhead Assembly

Multi-Bowl Wellhead Assembly

We can manufacture the Multi-Bowl Wellhead Assembly as per the customer’s requests.

Multi-Bowl Wellhead Assembly supports and seals two strings of pipe in a single head, consists of two pieces: a lower housing and an upper housing-installed as one complete unit. If the intermediate casing sticks, the mandrel casing hanger cannot be used. The two housings can be separated and the emergency slip-style casing hanger can easily be installed. The Multi-Bowl System comes complete with wear bushings, running tools, standard and emergency pack off, and combination test plug/running retrieving tool.

Features of Multi-Bowl Wellhead Assembly

• Backpressure valve profile available in all mandrel hangers
• Field proven
• Saves rig time by reducing installation time
• Increases safety by reducing BOP/ diverter handling
• Fluted mandrel casing hanger allows cement returns
Outlets
• Studded side outlets
• Line pipe threaded outlets
Manufacturing Standard
• API-6A, PSL-1, DD, L-U, PR-1
Availability
• Available in wide range of sizes and working
pressures:
- 11”-3,000 through 10,000 psi w.p.
- 13 5/8” – 3000 through 10,000 psi w.p.
- One or two piece seal assembly available for
completion phase
- System compatible with most casing programs
