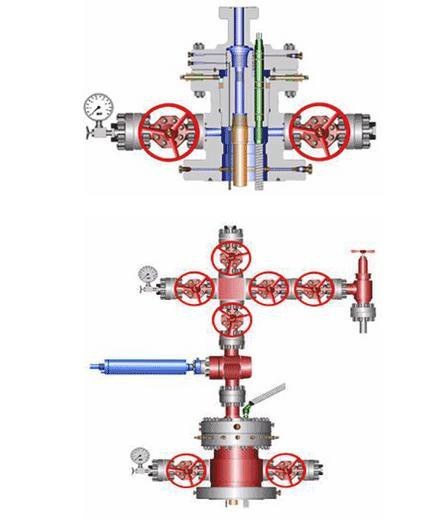

Product Pictures of API 6A ESP Wellhead assembly and Christmas tree

API 6A ESP Wellhead assembly and Christmas tree

API 6A ESP Wellhead assembly and Christmas tree mainly include below:
1.christmas tree,
2.tubing head.
3.casing head and gate valve.
4.cross

Specification of API 6A ESP Wellhead assembly and Christmas tree

·Product Standard:   API 6A

·Working pressure:   2000psi(13.8MPa)~20000psi(138MPa)

·Nominal diameter: 7 1/16" ~ 13 5/8“ or specially designed size 2 1/16″(52mm)~3 1/16″(78mm)

·Temperature rating: - 60°C ~ +121°C (K,U)

·Material class:       AA,BB,CC,DD,EE

·Product specification level:   PSL1~4

·Performance level:   PR1

·Working medium: Petroleum, Natural gas, Slurry, Including H2S, CO2 gas

Features  of API 6A ESP Wellhead assembly and Christmas tree

• ESP wellhead’s design, manufacturing, testing and material are all followed by API 6A standard strictly.

•  Valve can be used based on customer’s requirement.
