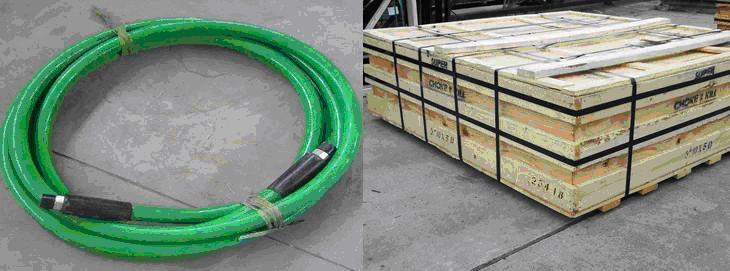

API 16D BOP hose (BOP control hose)
API 16D BOP hose (BOP control hose)
Applicability: Hydraulic control pipe line for BOP control equipments.
API 16D BOP hose (BOP control hose) Structure: A structure of lining,reinforcement,flame-retardand and thermal insulation layer,and protection cover with coupling patent design
Property: Under temperature of 1093℃ (2000℉), the product can perform well for more than consecutive 5 minutes under working pressure.
Standard: API Spec 16D
Product type and specification of API 16D BOP hose (BOP control hose)：
|
Hose size |
Inside Diameter mm |
Reinforcement Diameter mm |
Outside Diameter mm |
Working Pressure MPa |
Proof Pressure MPa |
Burst Pressure MPa |
Min.Bend Radius mm |
Weight Kg/m |
|||
|
MPa |
Psi |
MPa |
Psi |
MPa |
Psi |
||||||
|
Φ13(1/2 ) |
13±0.5 |
22.2±0.8 |
44±1.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
230 |
750 |
|
Φ16(5/8 ) |
16±0.5 |
26±0.8 |
47±1.5 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
260 |
750 |
|
Φ19(3/4) |
19±0.5 |
30±0.8 |
52±1.5 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
300 |
750 |
|
Φ25(1) |
25±0.8 |
36±0.8 |
59±1.5 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
360 |
750 |
|
Φ32(11/4) |
32±0.8 |
44±0.8 |
69±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
470 |
750 |
|
Φ38(11/2) |
38±1.0 |
50.8±1.0 |
76±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
570 |
750 |
|
Φ51(2) |
51±1.0 |
63.8±1.0 |
91±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
740 |
750 |
|
Φ102(4) |
102±1.0 |
129.0±1.0 |
157±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
1500 |
750 |
