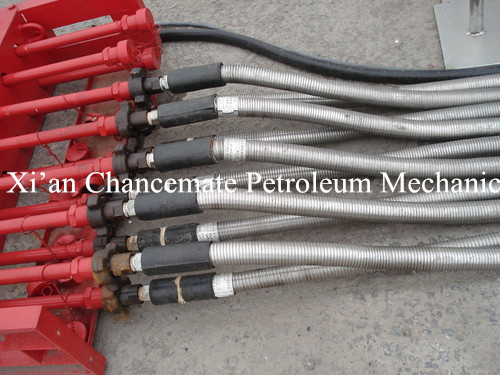

Armoured fire hose(fire resistant hose) or coflex hose
Our Armoured fire hose(fire resistant hose) or coflex hose is manufactured with superior components to withstand tough oilfield applications. For oilfield BOP hydraulic control line hose connections.
Features of Armoured fire hose(fire resistant hose) or coflex hose
- Meets api 16D certification (api 16C available upon request)
- Hydrostatic test certificates
- Certificate of conformity
- Stainless steel BOP hoses armored in heavy duty .015 gauge.
- Armor wall thickness: .031.
- Armor Ferrule is 316 Stainless Steel (Carbon Steel is also available)
- Carbon or Stainless Steel nipple with longer threads and larger hex for easy installation of hammer unions.
- 5,000 psi w.p -10,000 psi test pressure
- Thermal Blanket: non-conductive and non-flammable, 1500°F continuous rating
- Sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2".
Detailed size of Armoured fire hose(fire resistant hose) or coflex hose
|
Hose size |
Inside Diameter mm |
Reinforcement Diameter mm |
Outside Diameter mm |
Working Pressure MPa |
Proof Pressure MPa |
Burst Pressure MPa |
Min.Bend Radius mm |
Weight Kg/m |
|||
|
MPa |
Psi |
MPa |
Psi |
MPa |
Psi |
||||||
|
Φ13(1/2 ) |
13±0.5 |
22.2±0.8 |
44±1.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
230 |
750 |
|
Φ16(5/8 ) |
16±0.5 |
26±0.8 |
47±1.5 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
260 |
750 |
|
Φ19(3/4) |
19±0.5 |
30±0.8 |
52±1.5 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
300 |
750 |
|
Φ25(1) |
25±0.8 |
36±0.8 |
59±1.5 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
360 |
750 |
|
Φ32(11/4) |
32±0.8 |
44±0.8 |
69±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
470 |
750 |
|
Φ38(11/2) |
38±1.0 |
50.8±1.0 |
76±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
570 |
750 |
|
Φ51(2) |
51±1.0 |
63.8±1.0 |
91±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
740 |
750 |
|
Φ102(4) |
102±1.0 |
129.0±1.0 |
157±2.0 |
34.5 |
5000 |
69 |
10000 |
87.5 |
15000 |
1500 |
750 |
