Manual Cameron FC gate valve

Product Name:

Manual Cameron FC gate valve

No. :

Product Description

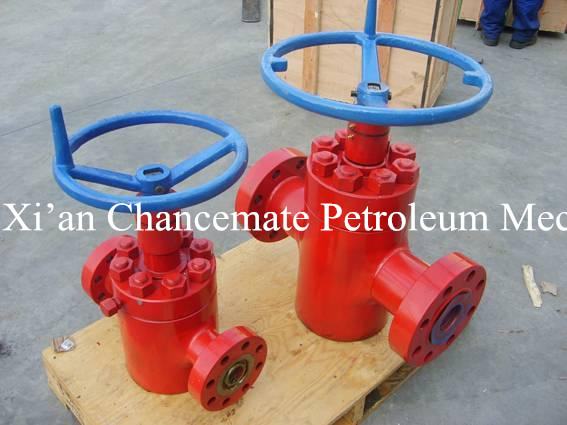

Product pictures of Manual Cameron FC gate valve

Manual Cameron FC gate valve
100% interchangeable with Cameron
Name: Cameron FC gate valve
manual and flanged type, Size: api size
WP.: 5,000~15,000psi
Material: steel

Manual Cameron FC gate valve

size:1-13/16",2-1/16",2-9/16",3-1/8"3-1/16",4-1/8"4-1/16"

woking pressure:5000psi,10000psi,15000psi,

level:DD(EE,FF,HH)

woking tempreture:PU,LU

PSL:2-4

PR:1-2

API 6A Cameron FC Gate Valve

Material List

API 6A Materials Classification.	Body & Bonnet Material	Stem Material / Coating	Gate Material /Coating	Seat Material /Coating
AA-General Service	Low Alloy Steel	AISI 41 XX Nitrided	AISI 41 XX Nitrided	SI 41 XX Nitrided
BB- General Service	Low Alloy Steel	AISI 41 XX Nitrided	AISI 41 XX Nitrided	Stellite ^TM 3
CC- General Service	4A	AISI 410 SS	AISI 410 Nitrided	Stellite ^TM 3
DD-Sour Service	Low Alloy Steel	AISI 41 XX Nickel-Plated	AISI 41 XX Hard-Face	Stellite ^TM 3
EE- Sour Service	Low Alloy Steel	AISI 410 Nitrided	AISI 41 XX Hard-Face	Stellite ^TM 3
FF- Sour Service	4A	AISI 410 Nitrided	AISI 41 XX Hard-Face	Stellite ^TM 3
HH- Sour Service	Low Alloy Steel clad with alloy 625 or solid alloy 718	Alloy 718	Alloy 718 Hard-Face	Stellite ^TM 3

Structural Features

Metal to Metal Sealing .
Simple Gate and seat design.
Bidirectional Sealing .
Back Seating Stem .
Non-Rising Stem .
Grease Injection Fitting.
Easy closing and sealing .
Forged Steel Construction.
