API 6A mud gate valve (union end mud gate valve)

Product Name:

API 6A mud gate valve (union end mud gate valve)

No. :

Product Description

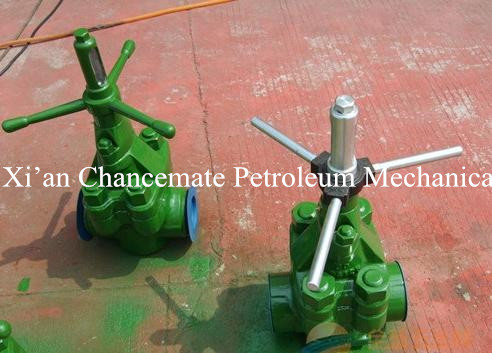

Product pictures of API 6A mud gate valve (union end mud gate valve)

API 6A mud gate valve (union end mud gate valve)

API 6A mud gate valve (union end mud gate valve)
Size:2 1/16"-7 1/16"
Pressure:2000psi-20000psi
Class:PR1-PR2, AA-FF, PSL1-2

API 6A mud gate valve (union end mud gate valve)

Item No.	Item	Technical Description
2	Nominal Bore	2 1/16“ - 7 1/16”
3	Working Pressure	2000 PSI – 20000 PSI
4	Working Temperature	Class LU (-46°C~121°C)
5	Working Medium	Oil, Natural gas, mud and gas containing H2S, CO2
6	Material Class	AA, BB, CC, DD, EE, FF, HH
7	Performance Requirement	PR1 – PR2
8	Specification Level	PL1 – PSL4

API 6A mud gate valve (union end mud gate valve)Technical Specification:

The union end mud gate valve is mainly used for drilling mud circulating system in oil field, It is used to control the flowing and stopping of mud. It is joined by trapezoid thread connection, It is quick and convenient to fix the equipment. The equipment has strong rigidity, which is safe and reliable, The union end mud gate valve seat and gate are sealed by means of parallel-type Metal to Metal Sealing, The effection of sealing is good, It is convenient to open, The two ends of the valve and pipes are joined and are stable with spherical movement,The movable connection of the rubber seal ring like "O" is not of high requirement about straightness of the two ends of pipes, When is is fited and its seal performance is very good.

SPECIFICATION of API 6A mud gate valve (union end mud gate valve)

1.Manufactured and Tested in Accordance with API Spec 6A
2.Forged Steel Body and Bonnet
3.API 6A PSL 1, 2 and 3 available
4.Valve seat and gate are sealed by Metal to Metal Sealing
5.Low Operating Torque
6.Quick Release Hand Wheel
7. Factory Pressure Tested in Accordance with API.6A
8. Can be supplied with Flanged End Connections, Hammer Union Ends, Threaded Connections or Butt Weld Ends
9.Material Classes DD, EE, FF, to NACE MR-01-75
10.Available with Pressure Ratings 3000psi, 5000psi and 10000psi in 2", 3", 4", 5" Valve Sizes
APPLICATIONS
1.Oil and Gas lines
2. Wellheads
3. Manifolds and Pipelines
4. Crude Oil and Sour Gas
5. Well Treating Chemicals
