reverse circulation junk basket
Product Name:
reverse circulation junk basket
No. :
:
:

Product Description

reverse circulation junk basket

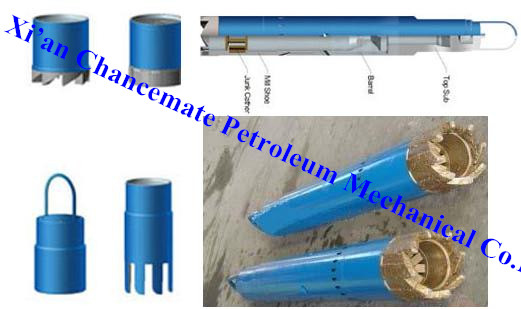

Product pictures of reverse circulation junk basket


Description: The reverse circulation junk basket is used to retrieve all types of small junk objects in well bores. This tool's unique principle of reverse circulation ensures complete recovery of all junk and eliminates misruns. A drain through the tool also eliminates the possibility of pulling a wet string even though the inner barrel is plugged by the core. In addition, it may be converted into an effective fishing magnet and still retain the reverse circulation feature. Features: A single junk catcher is used in each assembly. A lifting sub is provided for ease of handling which includes a storage space for the steel ball used in the operation of the tool. It is converted into a fishing magnet by replacing the catcher with the Bowen magnet insert.

Alternate Shoes available are the Type B and Type C. The Type B shoe is similar in design to Type A but dressed with Itcoloy. The Type C is flat bottomed and dressed with Itcoloy.

reverse circulation junk basket Specification: During operation, with the steel ball dropped into the valve seat, fluid flows through the inner passage of the barrel and out the vents in its lower end. The fluid is directed outward and downward and deflected toward the center. Fluid flows in a continuous stream to the center of the tool and up through return ports in the upper end of the barrel. All junk is thus carried into the barrel above the junk catcher.





The Full-Flow reverse circulation junk basket is similar to the standard Reverse Circulation Junk Basket and is also used to retrieve small junk objects in well bores. The difference is that the Full-Flow type has a unique valve assembly which allows circulation through the center to keep out shale or debris while running in the hole. A drain through the tool eliminates the possibility of pulling a wet string even though the inner barrel is plugged by the core.

reverse circulation junk basket Operation:

During operation, the ball is dropped to the valve seat. Pump pressure then causes pins to shear which opens the reverse circulation cavity to circulation. Fluid flows through the inner passage of the barrel, out the vents in its lower end, outward and downward deflected toward the center in a continuous stream, and up through return ports in the upper end of the barrel. All junk is thus carried into the barrel above the junk catchers.

Features:Alternate Shoes available are the Type B and Type C. The Type B shoe is similar in design to Type A but dressed with Itcoloy. The Type C is flat bottomed and dressed with Itcoloy.

Specification:Two Junk Catchers are used in each assembly. A Lifting Sub is provided for ease of handling which includes a storage space for the steel ball used in the operation of the tool. It is also converted into a Fishing Magnet by replacing the catchers with a Bowen Magnet Insert.





The Bowen - Itco Junk Basket is a rugged junk fishing device, using either a Mill Shoe or Flat Bottom Type Shoe in conjunction with two sets of free revolving finger type Catchers.

Features: The catchers are of rivetless construction. They may be easily redressed on the job, eliminating the necessity of returning them to the shop for replacement. The upper catcher is designed to effectively break the core that is cut by the shoe. The fingers extend only halfway to the center.


The lower catcher has alternately short and long fingers which extend almost to the center of the tool to effectively collect and retain odd pieces of junk or cores.

This Junk Basket may be easily converted to a fishing magnet by replacing the catchers with a Bowen magnet insert. Alternate Mill Shoes available are Type B and Type C. The Type B is similar to Type A in design but with ltcoloy dressing. The Type C is flat bottomed and dressed with Itcoloy.

Specification: Operation of the Itco Junk Basket is simple, requiring only slow rotation and circulating fluid, to retrieve junk, cores or both simultaneously.


S
pecification of
reverse circulation junk basket





Type



O.D.(mm)



Max O.D. of Fish(mm)



Steel Ball(mm)



Connection



Suitable Well Diameter(mm)

LL-F89

89

60.0

30

NC26

95.0-101.6

LL-F97

97

74.5

30

NC26

107.9-114.3

LL-F110

110

78.0

35

NC26

117.5-127.0

LL-F121

121

90.5

35

2 7/8″REG

130.0-139.7

LL-F130

130

95.5

40

NC31

142.9-125.4

LL-F146

146

112.0

40

NC38

155.5-165.0

LL-F159

159

121.0

45

NC40

168.0-187.3

LL-F178

178

132.0

45

4 1/2″REG

190.5-209.5

LL-F200

200

154.0

50

NC46

212.7-241.3

LL-F206

206

156.0

50

NC50

231.0-261.0

LL-F219

219

166.0

50

NC50

244.5-269.6

LL-F232

232

179.5

50

NC50

244.5-269.6

LL-F245

245

192.0

55

NC50

254.0-275.6

LL-F257

257

195.5

55

NC56

273.0-295.5

LL-F279

279

211.5

55

NC56

298.5-317.5

LL-F286

286

228.6

55

6 5/8″REG

320.0-346.7

LL-F300

300

251.5

60

6 5/8″REG

339.7-258.8

LL-F330

330

279.4

60

NC70

349.3-406.4

LL-F381

381

282.6

60

NC77

406.4-444.5
