releasing slip fishing spear
Product Name:
releasing slip fishing spear
No. :
:
:

Product Description

releasing slip fishing spear

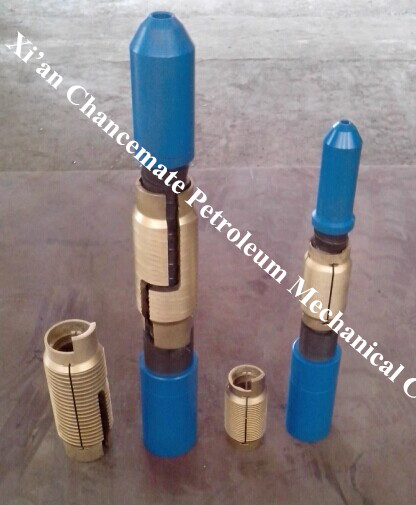

Product pictutres of releasing slip fishing spear


Description : releasing slip fishing spear provide a dependable, inexpensive, and simple means of engaging a fish internally. These Spears assure positive engagement, easy release from the fish when desired, and easy re-engagement after the Spear has been released.



Features: releasing slip fishing spear consists of a Mandrel, Grapple, Release Ring, and Nut. The Mandrel may be obtained in either  a  Flush  Type  or  a  Shoulder  Type.  Mandrel  top  connections  are  furnished  to  order. The Nut can be obtained as a plain bull nose guide or with a pin connection for the attachment of other tools below


releasing slip fishing spear





Assembly and Operation of releasing slip fishing spear



To Assemble: Screw the Grapple onto the Mandrel from the lower end with a left-hand action. Slide the Release Ring on below the helical section of the Mandrel and make up the Nut to the Mandrel. Before running in, screw the Grapple down against the Release Ring as far as it will go by hand. In this position, the Grapple will compress inward and will not engage the pipe sufficiently to interfere with the tool being run in.

To Engage the Fish: When the Spear has reached the point of desired engagement with the fish, rotate sufficiently to move the Mandrel one full turn to the left. This turns the Mandrel down through the Grapple, placing the Grapple into the engaging position. A straight pull will then wedge the Grapple into positive engagement with the fish.

To Release: Bump down to break the freeze, then rotate two or three turns to the right. This moves the Mandrel up through the Grapple, forcing the Grapple against the Release Ring and putting the Spear in released position. A straight upward pull will then generally free the Spear; however, it is recommended that the Spear be rotated slowly to the right when coming out. The matching cams of the Release Ring and Nut constitute a safety device which resists freezing or jamming.

Specification of releasing slip fishing spear for Drilling



Type

O.D.(mm)

O.D.of Guide Cone(mm)

Fishing Range(mm)

Connection

TLM60

86

48

46.1—50.7

NC26    2-3/8TBG

TLM73

95

52

54.6—62.0

NC26    2-7/8TBG

TLM89

105

58

66.1—77.8

NC31    2-7/8TBG

TLM102

127

75

84.8—99.1

NC38    3-1/2TBG

TLM114

127

85

92.5—102.3

NC38

TLM127

159

95

101.6—115.0

NC50

TLM140

159

102

117.7127.7

NC50

TLM60

159

135

140.3—155.3

NC50

TLM73

159

144

149.8—163.8

NC50

TLM89

159

160

168.3—179.7

NC50

TLM102

159

180

190.0—205.7

NC50

TLM114

203

210

215.9—228.6

6 5/8″REG

TLM273

203

210

241.3—260.3

6 5/8″REG

TLM340

203

210

298.4—323.8

6 5/8″REG

Specification of releasing slip fishing spearfor Work-over





Type



O.D.(mm)



O.D.of Guide Cone(mm)



Fishing Range(mm)



Connection

TLM/S-48

86

38

40.3—44.5

NC26/1.900TBG

TLM/S-60

86

44

46.1—50.7

NC26/2 3/8″TBG

TLM/S-73

95

52

54.6—63.5

2 7/8″REG/2 7/8″TBG

TLM/S-89

95

62

66.7—76.2

2 7/8″REG/2 7/8″TBG

TLM/S-102

105

80

85.7—101.6

NC31/3 1/2″TBG

TLM/S-114

105

85

92.7—104.1

NC31

TLM/S-127

105

95

101.6114.3

NC31

TLM/S-140

105

110

118.1—127.0

NC31

TLM/S-168

127

130

139.7—154.9

NC38

TLM/S-178

127

140

148.6—163.8

NC38

TLM/S-194

127

160

168.9—180.3

NC38

TLM/S-219

168

180

190.5—205.7

NC50




My friend, if you have any requests of our releasing slip fishing spear , please send your requests to my email: sales@chancematewellcontrol.com, we are 24 hours online to give you the best service
