Xi’an Chancemate Petroleum Mechanical Co.,Ltd

washover pipe

Product Name:

washover pipe

No. :

Product Description

washover pipe

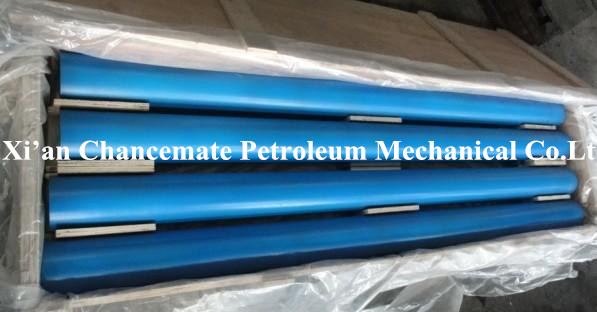

Product pictures of washover pipe

Specifications

Workover pipe is a special tool to release the stuck section of drillstring in the well bore.

Function:

Washover pipe is a special tool to release the stuck section of drill string in the well bore. We offer a complete range of washover pipe in the industry.

Structure:

The material of washover pipe is high strength special pipe and its' connections are double shoulder thread.The Washover string consists of drive sub, washover pipe and washover shoe(or mill shoe).

Type	Suitable well diameter (mm)	Max.washover size (mm)	Type	Suitable well diameter (mm)	Max.washover size (mm)
TXG114.3-8.56	120.65	80.90	TXG206.38-9.40	215.90	177.80
TXG127.00-9.19	146.05	101.60	TXG219.07-11.43	244.48	187.33
TXG139.70-9.17	152.40	117.48	TXG219.07-12.70	244.48	184.15
TXG146.05-7.92	161.93	127.00	TXG228.60-10.80	250.833	200.03
TXG146.05-9.00	161.93	120.65	TXG244.48-11.99	266.70	212.73
TXG168.28-8.946	187.33	142.88	TXG244.48-13.84	266.70	206.37
TXG177.80-9.19	200.03	152.40	TXG273.05-11.43	290.45	238.13
TXG193.68-9.53	212.73	168.28	TXG273.05-12.57	298.45	234.95
TXG193.68-10.92	212.73	165.10	TXG298.44-12.42	323.85	263.53
TXG193.68-12.70	212.73	161.93	TXG339.72-13.06	365.13	301.62
TXG200.00-10.92	215.90	170	TXG406.40-16.66	444.50	355.60
TXG203.2-9.53	215.90	177.00

My friend, if you have any requests of our washover pipe , please send your requests to my email: sales@chancematewellcontrol.com, we are 24 hours online to give you the best service
