    pilot mill shoe
    Product Name:
    pilot mill shoe
    No. :
    :
    :

    Product Description

    pilot mill shoe

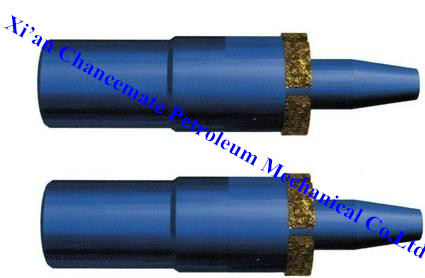

    Product pictures of pilot mill shoe


    pilot mill shoe is suitable for handling drilling troubles. It mainly mills the oil tube, drivepipe and drill collar etc. pilot mill shoe is a kind of reliable and highly efficient milling tool. The leading cone falls into fish water hole and guides the blade to mill fish. The milling process just likes Turning Tool Work in the garage. Every blade likes a knife. There are five to six knives. They speed up the milling process. Milling oil tube just needs 0.5-1.5m/h and milling the drill collar needs 0.2-0.4m/h.
     Features of pilot mill shoe
    Innovative structure; Abrasive resistance on material; Use of special superhard materials and processing technology; High speed of milling; Long life
    Specifications of pilot mill shoe
    Specification of pilot mill shoe


    Type
    O.D
    (mm)
    Connection
    Suitable well diameter
    Type

    O.D
    (mm)
    Connection
    Suitable well
    diameter
    MY130
    130
    2 7/8″REG
    142.9—152.4
    MY257
    257
    6 5/8″REG
    273.0—295.3
    MY140
    140
    2 7/8″REG
    153.6—165.1
    MY279
    279
    6 5/8″REG
    298.5—317.5
    MY156
    156
    3 1/2″REG
    168.0—187.3
    MY295
    295
    6 5/8″REG
    320.6—346.1
    MY178
    178
    4 1/2″REG
    190.5—209.5
    MY330
    330
    6 5/8″REG
    349.3—406.4
    MY200
    200
    4 1/2″REG
    212.7—241.3
    MY381
    381
    6 5/8″REG
    406.4—444.5
    MY232
    232
    4 1/2″REG
    244.5—269.9





    My friend, if you have any requests of our pilot mill shoe, please send your requests to my email: sales@chancematewellcontrol.com, we are 24 hours online to give you the best service
