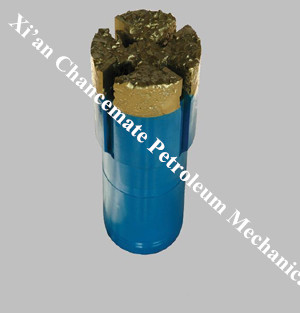

Product pictures of concave bottom mill shoe
Mill shoe can be divided into three kind: flat-bottom mill shoe, concave-bottom mill shoe, pear type mill shoe, etc , according to its structure and shape At the milling surface, the carbide particles are built up by welding, which plays a part of self-milling. It is used to mill the fallen substances, such as bolt, nut, tooth wheel, slip dog, fittings for deep-well pump, etc
Specifications of concave bottom mill shoe.
type |
size(mm) |
thread |
wellhole(mm) |
MA89 |
89 |
2 3/8 REG |
95.2-101.6 |
MA97 |
97 |
NC26 |
107.9-114.3 |
MA110 |
110 |
NC26 |
117.5-127.0 |
MA121 |
121 |
NC31 |
130.0-139.7 |
MA130 |
130 |
NC38 |
142.9-152.4 |
MA140 |
140 |
NC38 |
155.6-165.1 |
MA156 |
156 |
NC38 |
168.0-187.3 |
MA178 |
178 |
NC50 |
190.5-209.5 |
MA200 |
200 |
NC50 |
212.7-241.3 |
MA232 |
232 |
NC50 |
244.5-269.5 |
MA257 |
257 |
6 5/8 REG |
273.1-295.3 |
MA279 |
279 |
6 5/8 REG |
298.5-317.5 |
MA295 |
295 |
6 5/8 REG |
320.6-346.1 |
MA330 |
330 |
6 5/8 REG |
349.3-406.4 |
MA381 |
381 |
7 5/8 REG |
406.4-444.5 |
My friend, if you have any requests of our concave bottom mill shoe, please send your requests to my email: sales@chancematewellcontrol.com, we are 24 hours online to give you the best service
|
|
|
|
