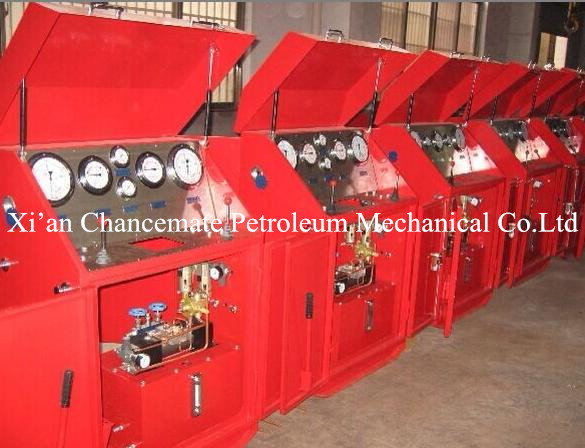

Choke Manifold Control Box

Usage:

choke manifold control box as a control assembly in hydraulic choke manifold, can remotecontrol the open/close of hydraulic choke valve for a long distance and the control panel can indicate the stand-pipe pressure,casing pressure and the opening/closing condition of hydraulic choke valve as well as the pulse number and frequency of the mud ppump if pump-pulse counter equipped,which can keep the pressure under well and is a necessary device to control kick and blowout and perform the pressure control technology in pil/gaswell.

Choke manifold control console

Main technical parameters:

1.Air source pressure: 0-0.6Mpa(Clean air source)

2.ambient temperature: -40°C-70°C

3.Rating work pressure: 3Mp

4.Maximum output oil pressure 4Mp

5.Fluid circuit connection:quick coupling M22 x 1.5

6.Gas circuit connection: quick coupling M16 x 1.5

7.Hydraulic oil specification:10# aeronautic hydraulic oil

8.Rating output oil pressure of orifice hydraulic chock manifold control unit: 6-8 Mpa

9.unit:

1)Chock manifold control unit:700x 470 x 1200

2)Dual-hydraulic chock manifold control unit:780x 490 x 1200

No	chock manifold control box type:	Pneumatic vibration-proof pressure transducer	vibration-proof pressure sensor (hydraulic)	orifice chock valve driver	valve phrasetransducer
1	JYK-35	YPQ-01-Z/40			QFW-47A
2	JYK-70D	YPQ-01-Z/70A			QFW-47A
3	JYK-105D	YPQ-01-Z/105			QFW-47A
4	JYA-35		YCQ-35		QFW-47A
5	JYA-70		YCQ-70		QFW-47A
6	JYA-105		YCQ-105		QFW-47A
7	JYK-35K	YPQ-01-Z/40		JFK6
8	JYK-70KD	YPQ-01-Z/70A		JFK6
9	JYK-105KD	YPQ-01-Z/105		JFK6
10	JYA-35K		YCQ-35	JFK6
11	JYA-70K		YCQ-70	JFK6
12	JYA-105K		YCQ-105	JFK6
