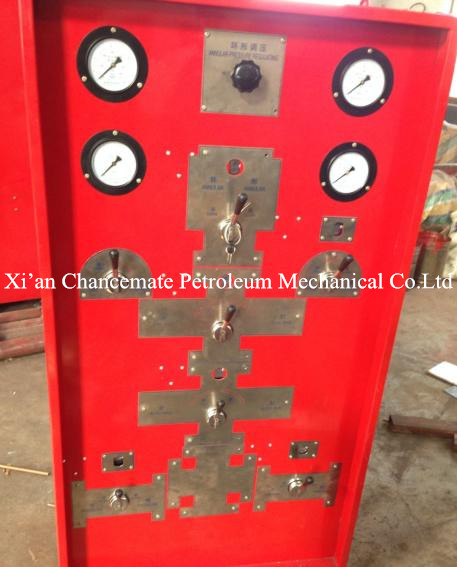

BOP control unit -driller's panel
Our company has ability to provide you each model of Driller's Panel that you need.
Driller's Panel
StandardAPI Spec.16D.
Power: 380v, 50Hz
Specified working pressure: 21MPa
Pressure range: 0~14MPa
Nitrogen charging pressure of accumulators: 7MPa
Air supply pressure: 0.65~0.8MPa
Pressure range of pressure valve: 18.9~21MPa
Hydro-pneumatic pressure switch: 18.9~21MPa
MAIN SPECIFICATIONS FOR BOP CONTROL SYSTEM
|
Item |
Model |
Number of Controlled Objects |
Accumulator Sets |
|||||
|
Annular |
Ram |
Choke |
Spare |
Nominal Volume (L) |
Effective Volume (L) |
Alignment |
||
|
1 |
FK50-2C |
|
1 |
1 |
|
25 X 2 |
25 |
Rear |
|
2 |
FK75-2 |
|
1 |
|
1 |
25 X 3 |
37.5 |
Rear |
|
3 |
FK125-2 |
|
1 |
|
1 |
25 X 5 |
62.5 |
Rear |
|
4 |
FK125-3 |
|
1 |
1 |
1 |
25 X 5 |
62.5 |
Rear |
|
5 |
FK150-2 |
|
1 |
|
1 |
25 X 6 |
75 |
Rear |
|
6 |
FK240-3 |
1 |
1 |
|
1 |
40 X 6 |
120 |
Rear |
|
7 |
FKQ320-3 |
1 |
2 |
|
|
40 X 8 |
160 |
Rear |
|
8 |
FKQ320-4 |
1 |
2 |
|
1 |
40 X 8 |
160 |
Rear |
