Full opening safety valve (FOSV)

Full opening safety valve (FOSV)

Full opening safety valve (FOSV)
API thread Connection
Ball type safety valve
10,000PSI pressure or higher
Easy operation

Full opening safety valve (FOSV)

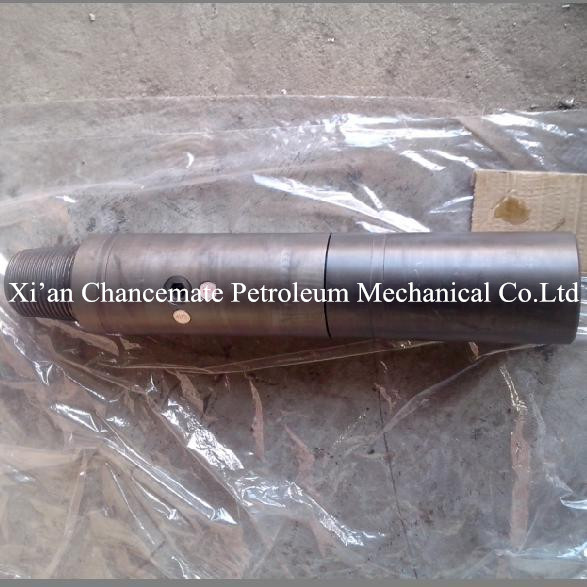

Full opening safety valve (short for FOSV) is a ball type safety valve used to stop flow through the drill string when the drill string is being withdrawn from the well.

Our full opening safety valve (FOSV) is dual body full-opening safety valve, so it does not interfere with the running of tools such as core barrels or survey instruments. It is designed to be stabbed into the top joint of drill pipe or tubing string at the rig floor and closed quickly in case a well kicks.

The ball-type design permits the valve to be compact, easy to handle, and yet have great strength. Standard test pressure is 10,000PSI, but higher pressure ratings are available. full opening safety valve (FOSV) and operating wrench should be maintained on the rig floor at all times.
