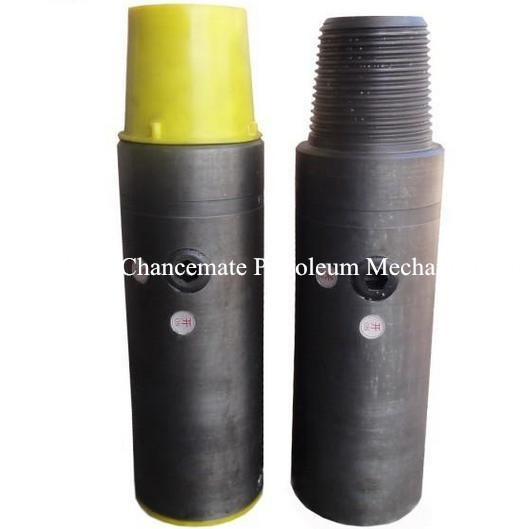

Upper kelly valve or upper kelly cock valve (upper cock vlave)
Upper kelly valve or upper kelly cock valve (upper cock vlave)
Upper kelly valve or upper kelly cock valve (upper cock vlave) is manually operated ball valve in drill stem circulatory system.
It is divided into upper kelly valve and lower kelly valve. The upper kelly valve is connected between lower end of swivel and upper end of Kelly, the lower kelly valve is connected between upper end of drill pipe and lower end of Kelly or connected between lower end of Kelly saving subs, the Kelly valve can be opened on or closed off by only turning the special operating wrench at 90°according to indicating direction. During drilling operation, the Kelly valve shalled connected at upper end and lower end of Kelly.
SPECIFICATION of Upper kelly valve or upper kelly cock valve (upper cock vlave)
Specifications--- Upper kelly valve or upper kelly cock valve (upper cock vlave)
|
Type |
O.D. (mm) |
Water Hole Diameter (mm) |
Connection |
Working Pressure (Mpa) |
Suitable Range |
|
CS146 |
146 |
50 |
4 1/2″REG-LH |
35 70 105 |
Tetragonal and Hexagonal kelly |
|
CS200 |
200 |
76 |
6 5/8″REG-LH |
35 70 105 |
Specifications--- lower kelly valve (lower cock valve)
|
Type |
O.D.(mm) |
Water Hole Diameter (mm) |
Connection |
Working Pressure (Mpa) |
Suitable Range |
|
XS105 |
105 |
41 |
NC31 |
35 70 105 |
Tetragonal and Hexagonal Kelly |
|
XS121 |
121 |
50 |
NC38 |
35 70 105 |
|
|
XS127 |
127 |
50 |
NC38 |
35 70 105 |
|
|
XS165 |
165 |
61 |
NC46 |
35 70 105 |
|
|
XS178 |
178 |
71 |
NC50 5-1/2FH |
35 70 105 |
