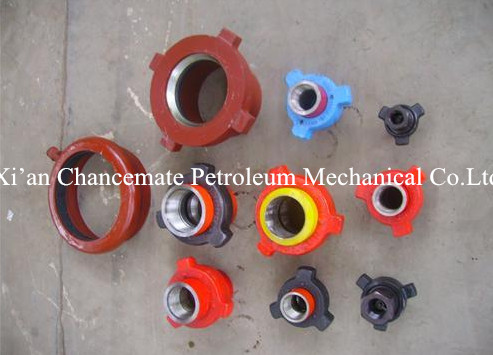

3" FIG 200 hammer union
3" FIG 200 hammer union
used for low-pressure manifold and operating pressure at maximum 2,000psi.
3" FIG 200 hammer union
The unions have compact structures and are widely used for low-pressure pipe-line and popular for low pressure rig piping. They also meet most requirements for medium pressure ranges for air, oil or gas service. Available in butt weld sch. 40
FIGURE 200, 2000PSI NSCWP, 3000PSI TEST, BLUE NUT, GRAY SUBS.---3" FIG 200 hammer union
|
Nominal pipe size |
Total length |
Nut radium |
material |
weight |
|||||
|
nut |
subs |
||||||||
|
in |
mm |
in |
mm |
in |
mm |
SC/SF |
CDB/SF |
lbs |
kgs |
|
1 |
25.4 |
2 11/16 |
68.3 |
1 15/16 |
49.2 |
SF |
SF |
1.75 |
0.8 |
|
1 1/4 |
31.7 |
2 7/8 |
73.0 |
2 3/8 |
60.3 |
SF |
SF |
2.37 |
1.1 |
|
1 1/2 |
38.1 |
2 7/8 |
73.0 |
2 3/8 |
60.3 |
SF |
SF |
2.37 |
1.1 |
|
2 |
50.8 |
3 5/16 |
84.1 |
2 28/32 |
73.8 |
SF |
SF |
2.25 |
2.4 |
|
2 1/2 |
63.8 |
4 1/16 |
103.2 |
3 11/16 |
93.7 |
SF |
SF |
10.0 |
4.5 |
|
3 |
76.2 |
4 3/8 |
111.1 |
3 7/8 |
98.4 |
SF |
SF |
15.25 |
6.9 |
|
4 |
101.6 |
4 13/16 |
122.2 |
5 |
127.0 |
SF |
SF |
20.0 |
9.1 |
|
6 |
152.4 |
6 5/8 |
168.3 |
6 7/16 |
163.5 |
SF |
SF |
44.5 |
20.2 |
|
8 |
203.2 |
7 1/4 |
184.2 |
7 11/16 |
195.3 |
SF |
SF |
61.0 |
27.7 |
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
|
|
