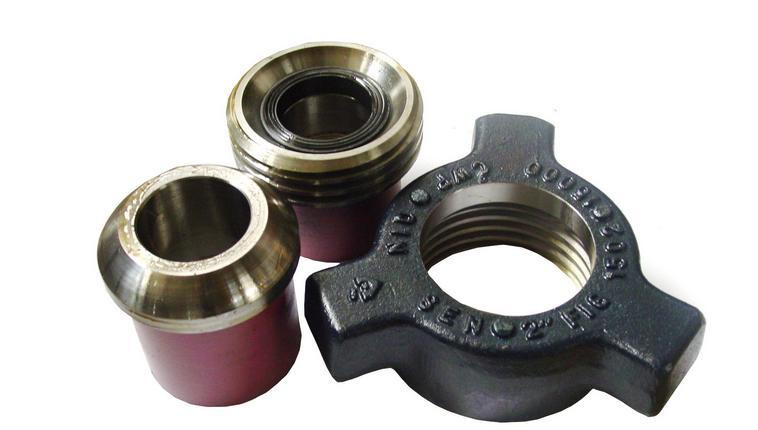

FIG 1502 hammer union


FIG 1502 hammer union

FIG 1502 hammer union

Specifications of FIG 1502 hammer union

(1)Standard: API 16C  (2)DN: 1"--5" (3) Working service: oil, gas (4) W P: 1000psi--20000psi (5) W T:-29c-121c (PU)

Description of FIG 1502 hammer union

High pressure union is forged and made of high strength alloy steel with imported world-class technology. Strict heat treatment ensures uniform metallographic structure and bearing capacity of connector.

The materials used fully comply with ASTM and AISI, and the technical indices of the product with API Spec 16C standard. The product sealing property is reliable and can fast make-up and break-out.

Parts of the same size, pressure rating, and figure number are interchangeable. The product allows line pipe thread, hose nipple, butt weld or Non-Pressure Seal end.

FIG 1502 hammer union

2.000 psi(138 bar)cold working pressure

Recommended service

Manifold and line connections suction service and corrosion service

Features

·0-ring in male sub improve sealing and protects metal to metal seal against corrosion

·Replaceable O ring extends union service life

·1 To 10 inch sizes

Application:

Cementing, fracturing, acidizing, testing, and choke-and-kill lines

Material: 45# steel or 35CrMo high strength alloy steel or as customer requested
