Tubing Hanger

Tubing Hanger

Specifications of Tubing Hanger
1.Size: 2-1/16 thru 4-1/16 Tubing Hanger
2. Working Pressure: 2,000 thru 20,000 psi Tubing Hanger
3 PR1 PR2 Tubing Hanger
4. PSL1~3
5. Working Temperature: K L P R S T U
6. Material Class: AA BB CC DD EE FF HH

Tubing Hanger

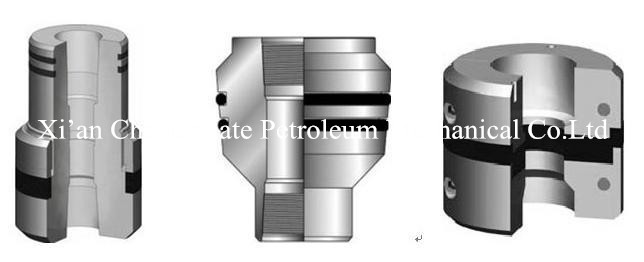

Tubing hanger is suitable for various oil fields and has safe reliable work, it comprises T-2W type and TG-M type and so on, and can be designed according to client's requirements.

The tubing hanger is sealed by means of squeezing the top threads to trigger rubber,can be provided with underground safety valve, control pipeline and crossing hole, and various API screw threads or special gas seal screw threads are arranged up and down.

T-2W tubing hanger is mainly used to seal and control the casing head/casing head ring under the condition of permitting the interchange of tubings,TG-W type tubing hanger is a mandrel hanger with high bearing capacity, hanger pressure class reaches 15000psi.
