API 6A Thread type casing hanger (mandrel casing hanger)

Product Name:

API 6A Thread type casing hanger (mandrel casing hanger)

No. :

Product Description

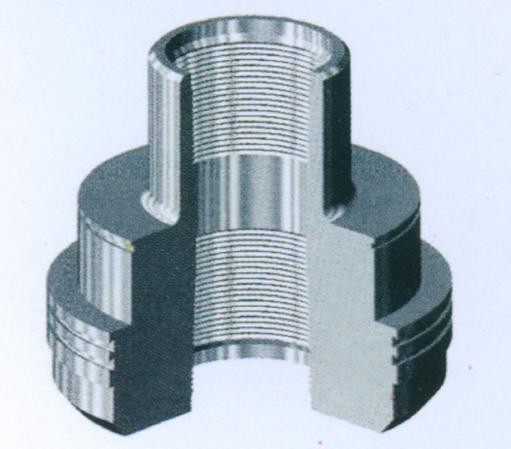

Product pictures of API 6A Thread type casing hanger (mandrel casing hanger)

API 6A Thread type casing hanger (mandrel casing hanger)

Rated operating pressure:2000~20000Mpa

Nominal bore diameter:11"~21 1/4"

Bypass bore diameter: 1 13/16"~4 1/16"

Outer diameter :5 1/2"~20"

API 6A Thread type casing hanger (mandrel casing hanger)

Features

1. there are two major types of casing hangers: threaded type (mandrel type ) and the slip-type.

2.the slip-type casing hanger comprises a number of models such as G.W. WD and WE.

3.the model WD casing hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the casing hanger close tightly around the casing by the use of outer force.

4.the model W casing hangers are structured to enable the dead-weight of the casing to energize the seal to function.

5.both the model WE and model G casing hangers operate by energizing the seal manually.

Product types and specifications:

Rated operating pressure psi(MPa)	Nominal bore diameter in(mm)	Bypass bore diameter in(mm)	Outer diameter of the casing for the hanger in(mm)
2000(13.8)	11”~21 1/4” (280~540)	1 13/16”~4 1/16” (46~103)	5 1/2”~20” (139.7~508)
3000(20.7)	11”~21 1/4” (280~540)	1 13/16”~4 1/16” (46~103)	5 1/2”~20” (139.7~508)
5000(34.5)	11”~21 1/4” (280~540)	1 13/16”~4 1/16” (46~103)	5 1/2”~20” (139.7~508)
10000(69.0)	11”~21 1/4” (280~540)	1 13/16”~4 1/16” (46~103)	5 1/2”~20” (139.7~508)
15000(103.5)	11”~21 1/4” (280~540)	1 13/16”~4 1/16” (46~103)	5 1/2”~20” (139.7~508)
20000(138.0)	11”~21 1/4” (280~540)	1 13/16”~4 1/16” (46~103)	5 1/2”~20” (139.7~508)
