slide teeth block spear
Product Name:
slide teeth block spear
No. :
:
:

Product Description

slide teeth block spear

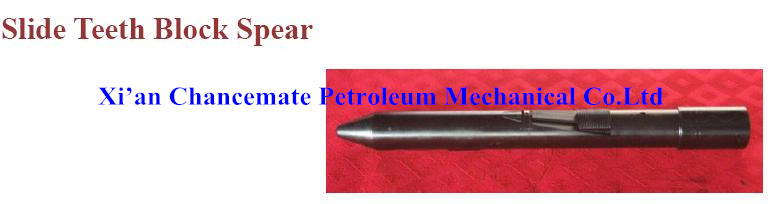

product pictures of slide teeth block spear

The slide teeth block spear type HLM-D(S) is designed to recover the fishing with inner hole, such as the drill pipe, tubing casing, wash-over pipe, wash pipe, packer and injection flow regulator, etc. It can be used with some other tools such as drilling jar, reversing spears and so on.


Specification of slide teeth block Spear





Type

I.D. of Fish(mm)

Connection API

Length(mm)

HLM-D(S)48

38-41

NC26













650,750

800,1000

1200,1500

1800,2000

HLM-D(S)60

47-52

NC26

HLM-D(S)73

54-64

NC31

HLM-D(S)89

64-77.9

NC31

HLM-D(S)102

77.9-92

NC31

HLM-D(S)114

92-103

NC38

HLM-D(S)127

108-116

NC50

HLM-D(S)140

118-127

NC50

HLM-D(S)178

146-161

NC50

HLM-D(S)219

195-203

6 5/8REG

HLM-D(S)245

216-229

6 5/8REG

HLM-D(S)273

248-259

6 5/8REG

HLM-D(S)340

313-323



6 5/8REG


My friend, if you have any requests of our slide teeth block spear, please send your requests to my email: sales@chancematewellcontrol.com, we are 24 hours online to give you the best service
