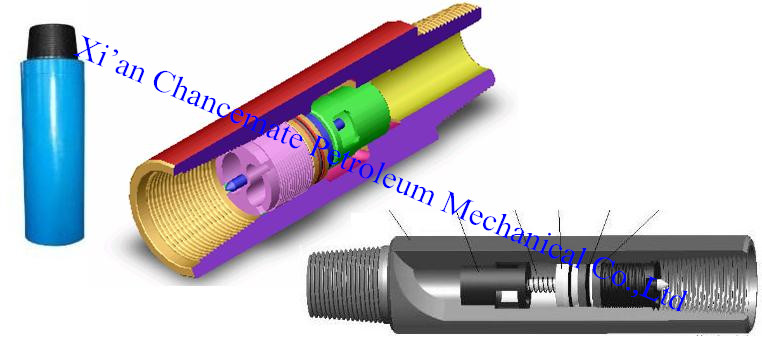

Product pictures of Arrow type back pressure valve
Arrow type back pressure valve is an important tool preventing of blowout. The design of the arrow type back pressure valve allows for an on-site determination of back pressure to be set at surface.
Specifications of Arrow type back pressure valve
Specification--- Arrow type back pressure valve
|
Type |
O.D (mm) |
I.D (mm) |
Connection |
Max. Seal Pressure (Mpa) |
|
FJ89 |
89 |
33 |
NC26 |
35 70 |
|
FJ105 |
105 |
44 |
NC31 |
35 70 |
|
FJ121 |
121 |
56 |
NC38 |
35 70 |
|
FJ159 |
159 |
70 |
NC46 |
35 70 |
|
FJ165 |
165 |
82 |
NC50 |
35 70 |
|
FJ168 |
168 |
82 |
NC50 |
35 70 |
|
FJ178 |
178 |
82 |
5-1/2FH |
35 70 |
|
FJ203 |
203 |
82 |
6-5/8REG |
35 70 |
|
FJ229 |
229 |
82 |
7-5/8REG |
35 70 |
Now we have the Arrow type back pressure valve in stock, send your requests to my email: sales@chancematedrilling.com , Me- Mr Mike will be here to give you the best service 24 hours online.
|
|
|
|
