model F float valve and model G float valve

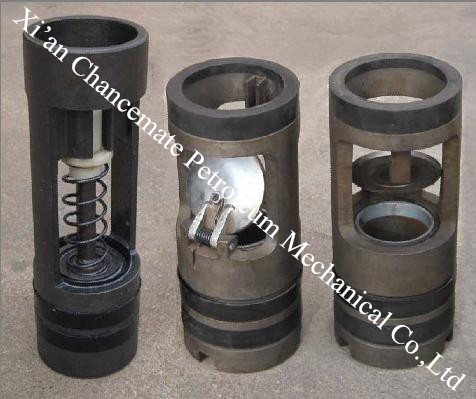

Product pictures of model F float valve and model G float valve
This Float Valve is normally installed in a standard bore-back of the bit sub, to provide fluid flow control at the bottom of the drill stem. It also prevents backflow of cuttings from plugging the drill bit jets while making connections .
Specifications of model F float valve and model G float valve
|
Type |
Dia. of Valve Assembly |
Length Of Valve Assembly |
Dia. Of Float Recess |
Sub Box |
Other Popular Connections |
||
|
Connection |
Depth Of Recess |
Connection |
Depth Of Recess |
||||
|
1R |
42.1(1-21/32) |
149.2(5-7/8) |
42.9(1-11/16) |
2-3/8Reg. |
231.8(9-1/8) |
NC23 |
231.8(9-1/8) |
|
2F-3R |
61.1(2-13/32) |
165.1(6-1/2) |
61.9(2-7/16) |
3-1/2Reg. |
266.7(10-1/2) |
NC31 |
260.35(10-1/4) |
|
3-1/2 F |
79.4(3-1/8) |
254(10) |
80.2(3-5/32) |
|
|
NC38 |
362.0(14-1/4) |
|
4R |
88.1(3-15/32) |
211.1(8-5/16) |
88.9(3-1/2) |
4-1/2Reg. |
325.4(12-13/16) |
NC44 |
331.8(13-1/16) |
|
5R |
98.4(3-7/8) |
247..7(9-3/4) |
99.2(3-29/32) |
5-1/2Reg. |
374.7(14-3/4) |
NC50 |
368.3(14-1/2) |
|
5F-6R |
121.4(4-25/32) |
298.5(11-3/4) |
122.2(4-13/16) |
6-5/8Reg.. |
431(17) |
5-1/2IF |
431.8(17) |
Now we have the model F float valve and model G float valve in stock, send your requests to my email: sales@chancematedrilling.com , Me- Mr Mike will be here to give you the best service 24 hours online
|
|
|
|
