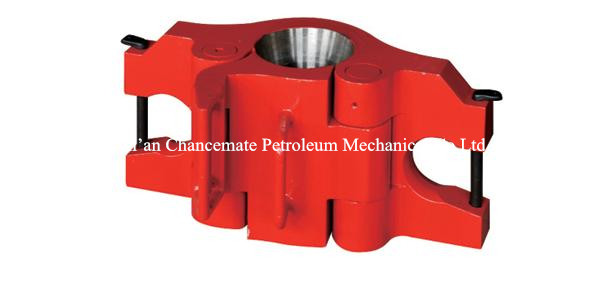

Type CDZ elevator (Type CDZ drill pipe elevator with 18 degree taper shoulder )


Type CDZ elevator (Type CDZ drill pipe elevator with 18 degree taper shoulder )

Specifications of type CDZ elevator (Type CDZ drill pipe elevator with 18 degree taper shoulder )

1. is mainly used in the holding and hoisting of drilling pipe

2. Model:Type CDZ drill pipe elevator with 18 degree taper

3. load range:150~500 tons

4. size range: 2³/₈-5¹/₂ inch

5.Standard: API Spec 8A/8C Specification for Drilling and Production Hoisting Equipment

Type CDZ elevator (Type CDZ drill pipe elevator with 18 degree taper shoulder )

Type CDZ elevator (Type CDZ drill pipe elevator with 18 degree taper shoulder ) is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.CDZ drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated loads range from 150t (1350kN) to 500t (4500kN, and cover pipe sizes from 2.3/8" to 5.1/2" O.D

Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
