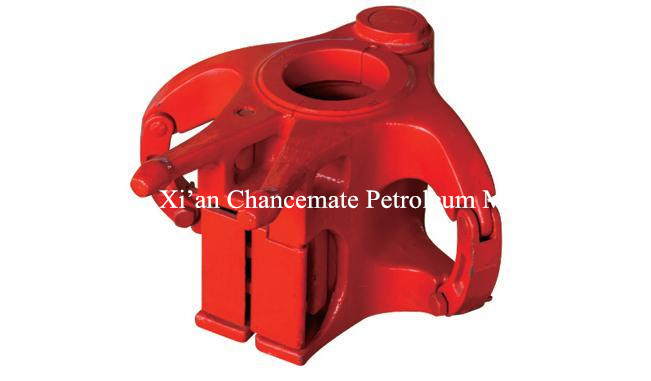

Type TA elevator
API 8A/8C Type TA elevator
Specifications of Type TA elevator
1.Type TA elevator is according to API 8A/8C
2.Rated Load :35~150Tons
3:Pipe size:2 7/8-11 1/4"
API 8A/8C Type TA elevator
Type TA elevator is for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 tons to 150 tons and cover all size tubular up to 111/4".
Detailed size of Type TA elevator
|
odel |
Size(in) |
Rated Cap. (short tons) |
|||
|
DC |
Tubing |
Casing |
|||
|
NU |
EU |
||||
|
TA-35 |
27/8-31/8 |
1.05-27/8 |
1.05-27/8 |
/ |
35 |
|
TA-65 |
27/8-31/8 |
1.66-27/8 |
1.66-27/8 |
/ |
65 |
|
TA-100 |
31/8-51/4 |
23/8-5 |
23/8-41/2 |
/ |
100 |
|
TA-150 |
41/8-111/4 |
/ |
/ |
41/2-103/4 |
150 |
