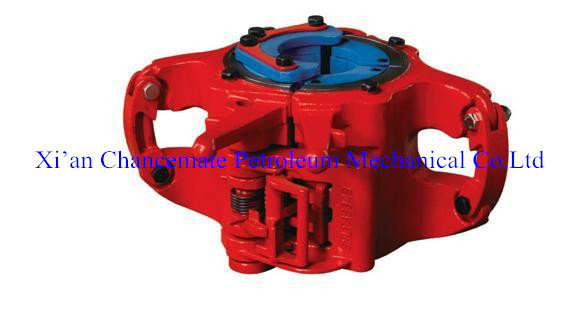

Y series slip type elevators (YT, HYT, MYT,YC, LYT)
Specifications of Y series slip type elevators(YT, HYT, MYT,YC, LYT)
1.Y series slip type elevators(YT, HYT, MYT,YC, LYT)
2.The Y Series Type
3.YT,YC,HYT,MYT,LYT
4.API Spec 8C
Y series slip type elevators(YT, HYT, MYT,YC, LYT) is for hoisting tools for handling tubing, drill pipe,casing ,electric submersible pump and other tubular goods in oil and gas fields. It's especially fit to integral joint tubing and non-coupled casing. It's constructed in two havles of practically the same weight, four slip bodies and some inserts, providing balance and easier opening and closing. They are designed and manufactured according to API Spec 'API Spec 8C-specification for drilling and production Hoisting Equipment.
Technical Specifications of Y series slip type elevators(YT, HYT, MYT,YC, LYT)
|
Size |
Rated Cap. |
||
|
mm(in) |
kN |
Short Tons |
|
|
HYT |
60.3-88.9 (23/8-31/2) |
1350 |
150 |
|
YT |
33.4-88.9 (1.315-31/2) |
675 |
75 |
|
MYT |
33.4-73 (1.315-27/8) |
360 |
40 |
|
LYT |
26.7-52.4 (1.05-11/16) |
180 |
20 |
|
HYC |
88.9-139.7 (31/2-75/8) |
1800 |
200 |
|
MYC |
88.9-117.8 (31/2-7) |
1125 |
125 |
|
YC |
88.9-117.8 (31/2-7) |
675 |
75 |
