Varco style drill collar slip
Specifications of varco style drill collar slip
Varco style drill collar slip
1.Drill Collar Size: 3" to 14" O.D.
2.Model:DCS-S,DCS-R,DCS-L
3.Varco style Design
4.Competitive Price

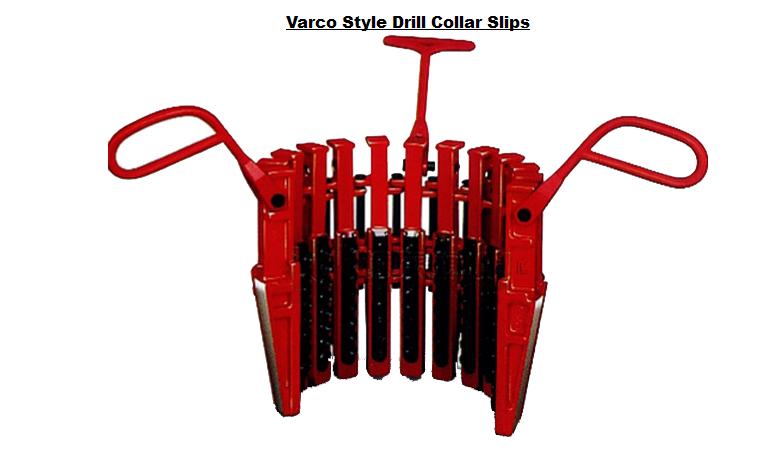

Varco Style Drill Collar Slips
Varco style drill collar slip is designed and manufactured as per API Spec 7K. They are interchangeable with Varco Design. Each forging segment with an extra long back design to provide maximum support to the curcular button gripping elements. Full wrap-around and curcular buttons assure for positive holding and slip setting. Varco Style Drill Collar Slips are flat on top to accommodate the Type MP Safety Clamp.
There are three models of Varco style drill collar slips: type DCS-S, DCS-R and DCS-L. They can accommodate drill collar from 3 inch(76.2mm) to 14 inch (335.6mm)O.D. The handling sizes can be adjusted by changing the quantity of inserts or slit body.
Technical Specification of Varco style drill collar slip
Type |
Tubular OD |
Insert Code-Qty |
Total number of slip |
Weight |
Insert Bowl number |
||
in |
mm |
kg |
lb |
||||
DCS-S |
3-4 |
76.2-101.6 |
2628-49 |
7 |
51 |
112 |
API or No.3 |
4-4.7/8 |
101.6-123.8 |
2620-49 |
7 |
47 |
103 |
||
DCS-R |
4½-6 |
114.3-152.4 |
2628-63 |
9 |
54 |
120 |
|
5½-7 |
139.7-177.8 |
2620-63 |
9 |
51 |
112 |
||
DCS-L |
6¾-8¼ |
171.4-209.6 |
2630-88 |
11 |
70 |
154 |
|
8-9½ |
203.2-241.3 |
2630-96 |
12 |
78 |
173 |
||
8½-10 |
215.9-254 |
2627-104 |
13 |
84 |
185 |
No.2 |
|
9¼-11¼* |
235-285.7 |
2630-112 |
14 |
90 |
198 |
||
11-12¾* |
279.4-323.9 |
2625-128 |
16 |
90.5 |
200 |
No.1 |
|
12-14* |
304.8-355.6 |
2630-136 |
17 |
94 |
207 |
