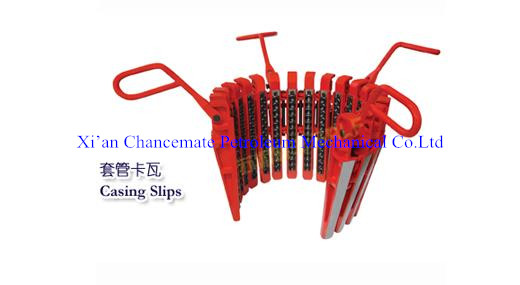

CMS-XL casing slip (CMS casing slip)
Product Name:
CMS-XL casing slip (CMS casing slip)
No. :
:
:
Product Description
CMS-XL casing slip (CMS casing slip)
CMS-XL casing slip (CMS casing slip)
Introduce of CMS-XL casing slip (CMS casing slip)
The CMS-XL casing slip (CMS casing slip) is designed and manufactured in API 7K and SY/T 5049 " Slips for well drilling" .It is manufactured in a structure of multi-segment pieces with firm structure, light weight , and large holding range, which is easy to fit the changing of the external diameter of the casing pipes due to wear and tear.
Casing O.D.
In
4 1/2
5
5 1/2
6
6 5/8
7
7 5/8
8 5/8
mm
114.3
127
139.7
152.4
168.3
177.8
193.7
219.1
Weight
Kg
72
72
70
70
93
88
79
86
Lb
151.2
151.2
147
147
195.3
184.8
165.9
180.6
Insert Bowl No.
API or No.3
Casing O.D.
In
9 5/8
10 3/4
11 3/4
13 3/8
16
18 5/8
20
24
26
30
mm
244.5
273.1
298.5
339.7
406.4
473.1
508
609.6
660.4
762
Weight
Kg
105
110
136
135
158
185
192
219
238
262
lb
220.5
231
285.6
283.5
331.8
388.5
403.2
459.9
499.8
550.2
Insert Bowl No.
No.2
No.1
Matching Casing Bushing
