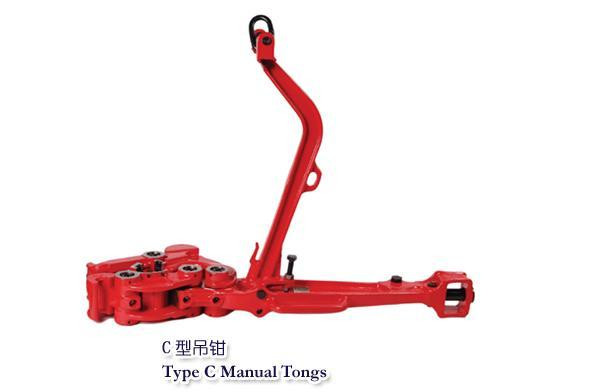

Type C manual tong
Type C manual tong
The type C manual tong is designed and manufactured in accordance with the API Spec 7K《Specification for Drilling and Well Servicing Equipment》and the National Standard for the Petroleum Gas Industry SY/T 5035《Elevator links ,elevators and tongs》which is a useful tool applied to make up and break out drill pipes ,coupling hoop of the drill pipe、joint、casings、casing hoops etc. When raise drill tool up and fall it down. Changing the latch lug jaws and handling shoulders can adjust the handing size of the tongs. According to the different handing size torque’s tongs can be ascertain.
Technical Parameters of Type C manual tong
Type：for handling pipe size 2 3/8-10 3/4
|
Part No. |
Lug law size |
Torque |
|||
|
Latch Lug Jaw Assembly No. |
Short Jaw Assembly No. |
Hinge Assembly No. |
in |
mm |
kN.m |
|
1# |
1# |
—— |
2 3/8-3.668 |
60.33-93.17 |
48 |
|
2# |
1# |
—— |
2 7/8-4.1/4 |
73.03-108 |
|
|
3# |
1# |
—— |
3.1/2-5.1/4 |
88.9-133.35 |
|
|
4# |
1# |
—— |
5.1/4-7 |
133.35-177.8 |
|
|
5# |
2# |
1# |
7-8.5/8 |
177.8-219.08 |
|
|
6# |
2# |
2# |
9.5/8-10.3/4 |
244.5-273.05 |
|
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
|
|
|
|
