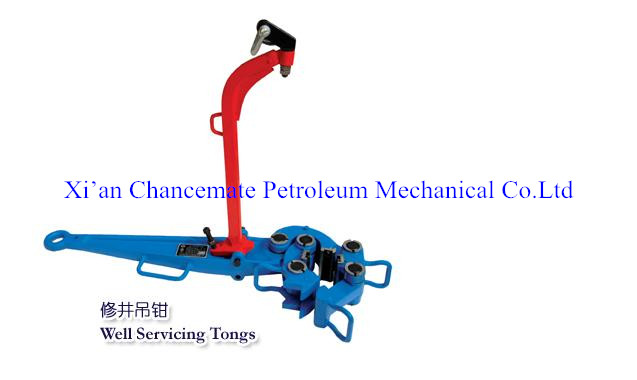

Well servicing tong (repairing manual tong)
Well servicing tong (repairing manual tong) is designed and manufactured in accordance with the API Spec 7K-2005《Specification for Drilling and Well Servicing Equipment》and the National Standard for the Petroleum Gas Industry SY/T 5035-2004 《Elevator links ,elevators and tongs》.This tool is used to fasten or remove the screws of drill tool and casing in well drilling operation. Changing the latch lug jaws and handling shoulders can adjust the handing size of the tongs.
Technical Specifications of well servicing tong (repairing manual tong)
|
Type |
Latch Lug Jaw No. |
Gripping Range |
Torque （kN·m） |
|
|
in |
mm |
|||
|
Well servicing tong (repairing manual tong) |
1# |
2.3/8-4.1/2 |
60.3-114.3 |
35 |
|
2# |
4.1/2-6.1/2 |
114.3-165.1 |
||
|
3# |
6.1/2-8.5/8 |
165.1-219.1 |
||
|
4# |
9.5/8-10.3/4 |
244.5-273.1 |
||
