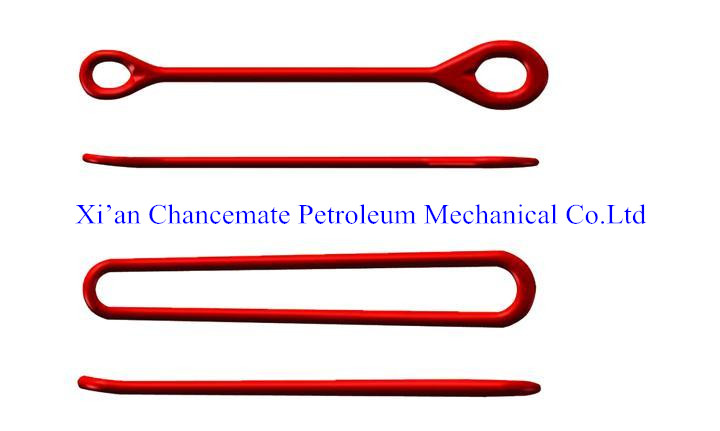

double arm elevator link (forged elevator links)
API 8C double arm elevator link (forged elevator link)

double arm elevator link (forged elevator links) are designed to hang elevators from Top Drive System or Hooks in drilling operation. Read the
Manual before use elevator links.
  Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated, surface-strengthen treated and NDT for super performance and long service.
The rating loads of elevator links series are 30 ton, 50 ton, 65 ton, 75 ton, 100 ton, 150 ton

       All the technical data and properties of elevator links completely conform to the requirements of SY/T 5035 and API Spec 8C.

• Adopted high-quality alloy steel and throughout swaged forging process.
• WORKING LOAD LIMIT: 30~150 USton
• Shaped by forging and welding.
• Special Heated Treated.
• Every link be NDE checking.
• Its strength is verified throughout tensile test 1.5 X WLL
• There are signs such as WORKING LOAD LIMIT in the link.
• Surface painted
• It is applicable for drilling operation for fleet well and repairing well.
• Detailed size of double arm elevator link (forged elevator links)
•
