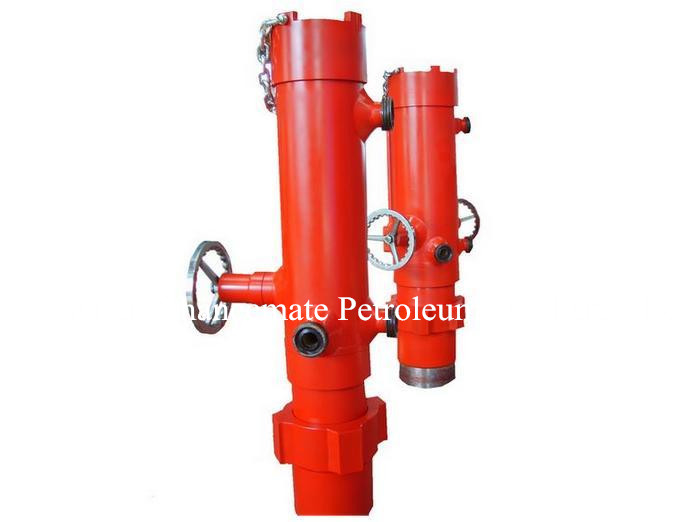

Single plug cement head (casing cement head)
Single plug cement head (casing cement head)
Single plug cement head (casing cement head) is a special tool for pumping slurry and releasing plug. Feature : 1.Quick-latch adapter is used to provide easier, faster and safer thread connection with API STC/LTC cementing casing.2. Indicator shows plug releasing.3.Balance pipe is developed.
Features of Single plug cement head (casing cement head)
1. Main parts are made from AISI4145H alloy steel.
2. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing. It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads.
3. Positive lever indicates plug releasing.
4. Balance pipe is developed.
Technical specification and parameer of single plug cement head (casing cement head)
|
Specifications, (in) |
Φ139.7 (5½") |
Φ168 (6⅝") |
Φ177.8 (7") |
Φ194 (7⅝") |
Φ244.5 (9⅝") |
Φ273 (10¾") |
Φ339.7 (13⅜") |
|
Overall Length, mm |
1460 |
1500 |
1500 |
1550 |
1750 |
1750 |
1780 |
|
Manifold |
2"Union |
||||||
|
I.D. of Plug Container, mm |
Φ125 |
Φ150 |
Φ160 |
Φ175 |
Φ225 |
Φ250 |
Φ320 |
|
Length of Plug Container, mm |
400 |
450 |
450 |
450 |
550 |
550 |
600 |
|
Working Pressure, MPa |
35,50 |
35,50 |
35,50 |
35,50 |
35,50 |
35 |
35 |
