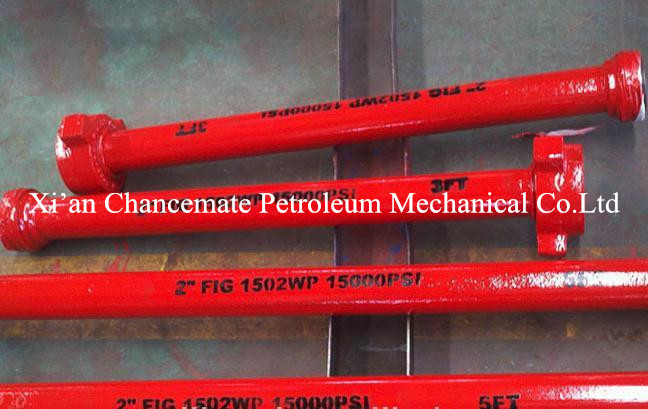

1502 integral pup joint (flowline pipe or high pressure straight pipe )
Specifications of 1502 integral pup joint (flowline pipe or high pressure straight pipe )
1502 integral pup joint (flowline pipe or high pressure straight pipe )
1 Size:1-4''
2 rated working pressure:1000-15000psi
3.Length per joint.. 1m,1.5m,2m,2.5m,2.8
1502 integral pup joint (flowline pipe or high pressure straight pipe )
Product Description&Specification
High pressure straight pipe have four different types: pressure seal, non-pressure seal, integral type and welding type. We can provide 1"~4" and 1000psi to 15000psi(7MPa to 105MPa) straight pipes. 1m,1.5m,2m,2.5m,2.8m long integral straight pipes are available. We also provide HP straight pipes with other sizes and pressure ratings as per customers" requirements.
1, High pressure straight pipes have four different types: pressure seal, non-pressure seal, integral type and welding type.
2 ,We can provide 1"~4" and 1000psi to 15000psi(7MPa to 105MPa) straight pipes. 1m,1.5m,2m,2.5m,2.8m long integral straight pipes are available.
3, We also provide HP straight pipes with other sizes and pressure ratings as per customers' requirements.
4, The model of Pressure Seal Type: FIG402 union ,FIG602 union ,FIG1002 union ,FIG1502 union rated 4000psi(28MPa)~15000psi(105MPa).
5 ,The model of Non-pressure Seal Type: FIG206 union,FIG602 union,FIG1002 union,FIG1502 union, rated 2000psi(14MPa)~15000psi(105MPa).
6 ,The model of Conventional Integral Type FIG602 union,FIG1002 union,FIG1502 union.rated 6000psi(42MPa)~15000psi(105MPa).
7, The model of Integral Type for H2S environment FIG602 union,FIG1002 union,FIG1502 union.rated 5000psi(35MPa)~10000psi(70MPa).
8 ,The model of Welded Union Type: FIG402 union,Tr union in metric,FIG602 union,FIG1002 union,FIG1502 union.rated 4000psi(28MPa)~15000psi(105MPa).
9, The model of Welded Flange Type 21/16″flange,29/16″flange,31/8″flange,41/16″flange,31/16″flange.rated 3000psi(21MPa)~15000psi(105MPa).
1502 integral pup joint (flowline pipe or high pressure straight pipe )
1502 integral pup joint (flowline pipe or high pressure straight pipe ) are designed to be compatible with FMC Chiksan pup joints and SPM pup joints, based on techlonogies imported from FMC pup joints.
1502 integral pup joint (flowline pipe or high pressure straight pipe ) are available in lengths to 10 feet to handle fluids at cold working pressures to 15,000 psi. Sour gas pup joints are also available.
|
Description |
End Connection |
Cold WP |
Diameter (inch) |
|||
|
1-1/2" |
2" |
3" |
4" |
|||
|
Integral Pup Joints |
FIG 602 |
(6,000psi 42Mpa) |
y |
y |
y |
|
|
FIG 1002 |
10,000psi (70Mpa) |
y |
y |
y |
|
|
|
FIG 1502 |
15,000psi (105Mpa) |
y |
y |
y |
|
|
|
Integral Pup Joints for sour gas service |
FIG 602 |
5,000psi (35Mpa) |
y |
y |
y |
|
|
FIG 1002 |
7,500psi (53Mpa) |
y |
y |
y |
|
|
|
FIG 1502 |
10,000psi (70Mpa) |
y |
y |
y |
|
|
|
Welded Pup Joints |
FIG 602 |
6000psi (42Mpa) |
|
y |
y |
y |
|
FIG 1002 |
10,000psi (70Mpa) |
y |
y |
y |
y |
|
|
FIG 1502 |
15,000psi (105Mpa) |
y |
y |
y |
y |
|
Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
|
