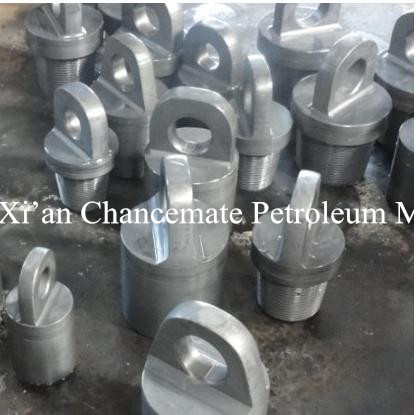

API lifting cap (lifting plug)
API lifting cap (lifting plug) is a special tool forlifting of drilling tools in petroleum, natural gas, drillingengineering and geographical exploration .The API lifting cap (lifting plug) is available in integral type and circular type (called as lifting bail)
API lifting cap (lifting plug) are tools for lifting of drilling tools, such as drill collars, stabilizers.
specifications - API lifting cap (lifting plug)
|
Connection |
O.D.(mm) |
Length(mm) |
Connection |
O.D.(mm) |
Length(mm) |
|
7 5/8 REG Pin |
210 |
290 |
7 5/8 REG Box |
230 |
290 |
|
6 5/8 REG Pin |
190 |
280 |
6 5/8 REG Box |
200 |
280 |
|
NC50 Pin |
155 |
270 |
NC50 Box |
160 |
260 |
|
NC46 Pin |
150 |
270 |
NC46 Box |
160 |
260 |
|
NC38 Pin |
115 |
260 |
NC38 Box |
120 |
270 |
|
NC31 Pin |
100 |
210 |
NC31 Box |
120 |
220 |
|
2 3/8 REG Pin |
80 |
190 |
2 3/8 REG Box |
110 |
200 |
|
NC26 Pin |
89 |
200 |
NC26 Box |
110 |
200 |
|
3 1/2 REG Pin |
100 |
220 |
3 1/2 REG Box |
130 |
270 |
|
4 1/2 REG Pin |
145 |
260 |
4 1/2 REG Box |
160 |
260 |
|
2 7/8 EUE Pin |
80 |
220 |
2 7/8 EUE Box |
80 |
220 |
