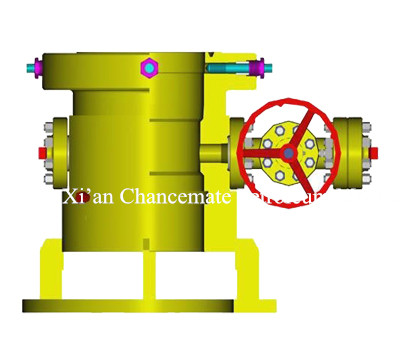

Product pictures of 2000 ~10000 psi TDH Casing Head Assy

2000 ~10000 psi TDH Casing Head Assy

TDH Casing Head Assy

Features of TDH Casing Head Assy

1.With slip-lock bottom to provide quick, permanent casing head connection over field cut conductor casing.
2.Utilizes set screws to activate the slip-style connection, fixing the casing head to the conductor.
3.Adaptable slip-lock connector allows for elastomer and metal-to-metal sealing.
4.Can be installed conveniently and fast. Accept BT type seal for various specifications of casing.

5. A landing base can be installed in the casing head if needed to help to distribute the wellhead loads over a larger area when working in marshy location or in platform application.

Detailed Specifications
Norminal Size: 9“ ~ 21 1/4“
Working Pressure: 2,000 ~10,000 psi
Working Temp: -29°C ~ 121°C
PSL:  PSL 1 ~ 4
PR:  PR 1 ~ 2
Material Class:  AA ~ FF
