    API 16A spacer spool (adapter spool or adaptor spool)
    Product Name:
    API 16A spacer spool (adapter spool or adaptor spool)
    No. :
    :
    :

    Product Description

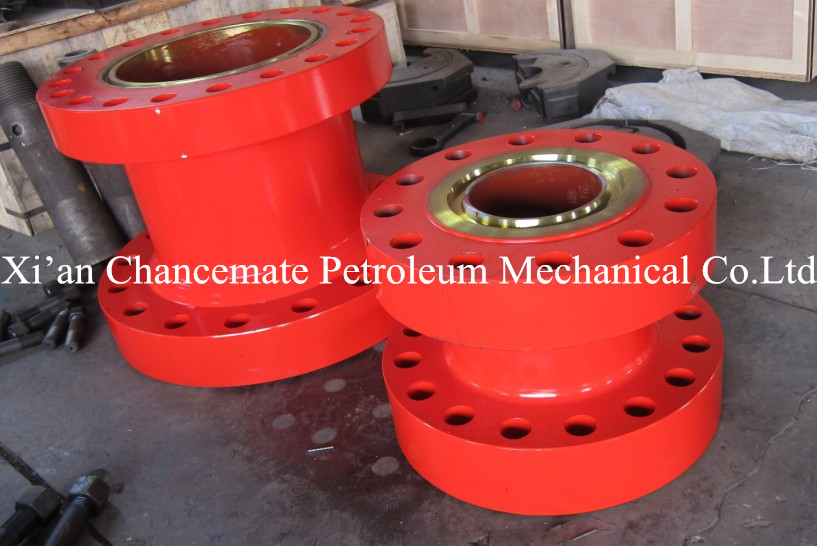

    Product pictures of 16A spacer spool (adapter spool or adaptor spool)

    API 16A spacer spool (adapter spool or adaptor spool)

     API 16A spacer spool (adapter spool or adaptor spool)
    1.Size:11"-21 1/4"
    2.Pressure:2000-15000PSI
    3.Ends:Studs, Flange, Slip
    4.Forging.

    API Spec 16A  spacer spool (adapter spool or adaptor spool)

    Simple Specification of API 16A spacer spool (adapter spool or adaptor spool)

    API 16A spacer spool (adapter spool or adaptor spool) in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill and Production Manifold applications. Spacer Spools usually have the same nominal end connections. Spacer Spool identification consists of naming each end connection and the overall length. NOV SARA Spacer Spools usually do not have outlets, but customers may specify outlets.



    API 16A spacer spool (adapter spool or adaptor spool) Feature

    • Body: in-line or angle.
    • End connections: flanged, threaded or weld end.
    • Connections: 1”, 2”,3” from ANSI 150# up to API 5000.
    • Trim in stainless steel, hard facing or tungsten carbide.
    • Profiled trim to provide linear characteristics.
    • Adjusting handle to provide continuous control.
    • Indicator barrel shows valve setting in 1/64”.
    • Valves can be automated with electric or pneumatic actuators.
    • Custom engineered microspline trims provide control below Cv+0.01 and maybe interchanged in standard bodies.



    Common Size of API 16A spacer spool (adapter spool or adaptor spool)


    Description

    L (mm)

    3 1/8" X 5M To 3 1/8" X 5M

    1092

    4 1/16" X 5M To 4 1/16" X 5M

    275

    4 1/16" X 10M To 4 1/16" X 10M

    1588

    4 1/16" X 15M To 4 1/16" X 15M

    614

    5 1/8" X 5M To 5 1/8" X 5M

    287

    7 1/16" X 5M To 7 1/16" X 5M

    700

    9" X 5M To 9" X 5M

    5200

    11" X 5M To 11" X 5M

    3048

    13 5/8" X 3M To 13 5/8" X 3M

    3048

    13 5/8" X 5M To 13 5/8" X 5M

    635

    13 5/8" X 10M To 13 5/8" X 10M

    650

    21 1/4" X 2M To 21 1/4" X 2M

    1400

    26 3/4" X 3M To 26 3/4" X 3M



    2440





    Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
