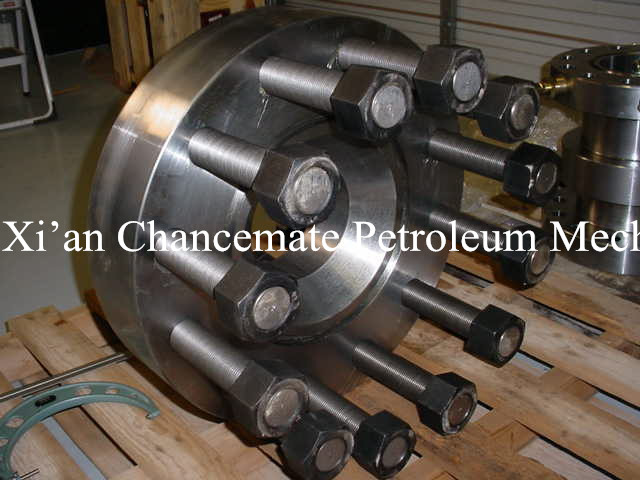

double studded adaptor flange(DSA or DSAF )
Features of double studded adaptor flange(DSA or DSAF )
1.standard:API 6A
2.pressure:2000PSI to 20000PSI
3.service condition:H2S condition
API oil field double studded adaptor flange(DSA or DSAF
Main Description of double studded adaptor flange(DSA or DSAF )
Main Specification of double studded adaptor flange(DSA or DSAF )
Size: As per customer’s requirement
Pressure rating: 2,000PSI to 20,000PSI
Material of construction: As per API 16A
Service condition: General, Sour services
Specificaion of double studded adaptor flange(DSA or DSAF )
|
Working pressure |
2000PSI-20000PSI |
|
Working medium |
oil,natural gas,mud |
|
Working temperature |
-46°C-121°C(L-U) |
|
Material class |
AA –HH |
|
Specification class |
PSL1-PSL4 |
|
Performance class |
PR1-PR2 |
Size & Pressure (custom-made is welcome)
|
DSAF Description |
Flange thickness (T) |
|
|
2-1/16” x 5M To 3-1/8” x 5M |
70 |
|
|
2-1/16” x 10M To 4-1/16” x 10M |
80 |
|
|
3-1/16” x 10M To 4-1/16” x 10M |
130 |
|
|
3-1/16” x 10M To 4-1/16” x 5M |
80 |
|
|
4-1/16” x 5M To 2-1/16” x 5M |
75 |
|
|
4-1/16” x 5M To 3-1/8” x 5M |
83 |
|
|
4-1/16” x 2M To 4-1/16” x 5M |
80 |
|
|
7-1/16” x 10M To 13-5/8” x 10M |
170 |
|
|
7-1/16” x 5M To 13-5/8” x 5M |
150 |
|
|
11” x 15M To 18-3/4” x 15M |
256 |
|
|
11” x 5M To 13-5/8” x 5M |
144 |
|
|
13-5/8” x 10M To 11” x 10M |
267 |
|
|
13-5/8” x 3M To 16-3/4” x 2M |
150 |
|
|
13-5/8” x 10M To 18-3/4” x 15M |
256 |
|
|
13-5/8” x 5M To 18-3/4” x 15M |
256 |
|
|
18-3/4” x 15M To 20-3/4” x 3M |
270 |
|
|
20-3/4” x 3M To 18-3/4” x 15M |
256 |
|
|
21-1/4” x 2M To 18-3/4” x 15M |
256 |
|
