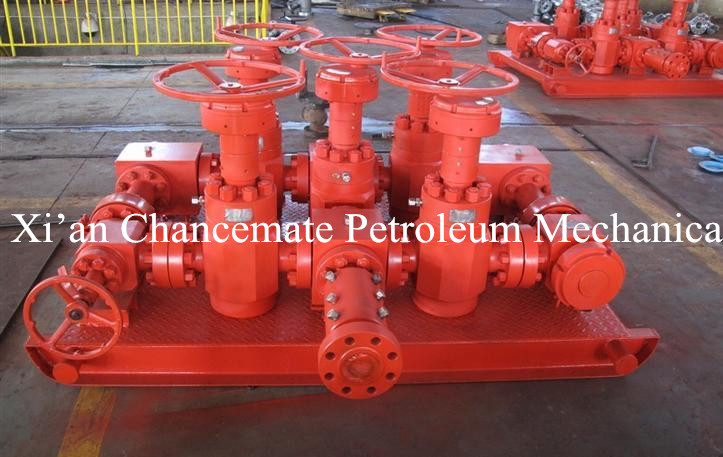

Product pictures of API 16C choke manifold and kill manifold

 API 16C choke manifold and kill manifold

API Spec choke manifold and kill manifold

choke manifold is a system of valves and chokes for controlling the flow from the well usually has two flow paths, one adjustable choke used primarily for cleaning the well up and facilities to install and change choke of fixed sizes for a more accurate flow control during main well flow periods.

Each flow path has two closing gate valves which are used to direct the flow through either of the chokes or the chokes or the bypass and to provide isolation from pressure when changing the fixed choke. A dual isolation, double block and bleed valve arrangement is recommended for high pressure, sour gas and sand frac clean ups.

Kill manifold is often used in the oilfield when drilling, Kill manifolds are designed and manufactured in accordance with API 6A&API 16C standards. They are specifically made for injecting heavy mud, water and extinguishant during drilling.

Eternal has many sizes and pressure ratings Kill manifolds used for drilling applications.

API 16C choke manifold and kill manifold
1)WP:2000-15000psi
2)Nominal Bore:2-1/16"~4-1/16"
3)working medium: oil, natural gas, mud

API 16C choke manifold and kill manifold

·Working Pressure3000PSI--15000PSI

·Nominal Bore2-1/16"  --- 4-1/16 "

·Working medium: oil, natural gas, mud

·Working temperature: -46 degrees to 120 degrees

·When full ram seals well, inject weighted mud into well bore to perform well killing.

·When well blowout occurred, inject water into well through kill manifold to prevent be on fire.

·When the well is on fire, inject extinguishing agent into well  kill manifold to put out fire.

Detailed specifications of API 16C choke manifold and kill manifold

Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
