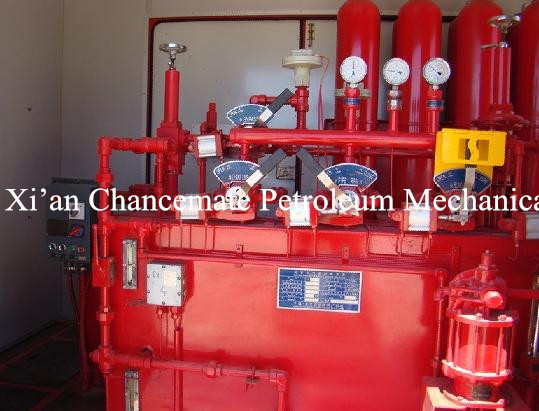

API 16D hydraulic BOP control unit (BOP control system)
API 16D hydraulic BOP control unit (BOP control system) is a special equipment which is used to control BOP, hydraulic choke and kill system, and indispensable equipment for blowout prevention during drilling or well servicing in petroleum and natural gas industry. The BOP Control Systems are all strictly designed, manufactured and inspected in accordance with National Standard SY/T5053.2-2001 & API Spec.16D
More than 20 types of BOP Control Systems , whose controlled objects are from 2 to 8 , being suit for any difficult climate atmosphere or bad weather conditions in inland sand areas or high plateau at home and abroad
MAIN SPECIFICATIONS FOR API 16D hydraulic BOP control unit (BOP control system)
|
TYPE |
NUMBER OF OBJECT CONTROLLED |
ACCUMULATOR SETS |
VOLUME OF OIL BOX |
FLOW VOLUME OF PUMP |
MOTOR POWER |
WORKING |
|||||||
|
ANNULAR |
FLASHBOARD |
CHOKE |
SPARE |
TOTAL VOLUME |
PERMITTED |
ALIGNMENT |
ELETRONIC |
PNEUMATIC |
HANDLED |
||||
|
FK75-2 |
|
1 |
|
1 |
25×3 |
37.5 |
rear |
170 |
12 |
|
11 |
5.5 |
21 |
|
FK150-2 |
|
1 |
|
1 |
25×6 |
75 |
rear |
250 |
24 |
|
11 |
11 |
21 |
|
FK125-2 |
|
1 |
|
1 |
25×5 |
62.5 |
rear |
320 |
18 |
|
11 |
7.5 |
21 |
|
FK125-3 |
|
1 |
1 |
1 |
25×5 |
62.5 |
rear |
320 |
18 |
|
11 |
7.5 |
21 |
|
FK240-3 |
1 |
1 |
|
1 |
40×6 |
120 |
rear |
440 |
24 |
|
11 |
11 |
21 |
|
FKQ320-3 |
1 |
2 |
|
|
40×8 |
160 |
rear |
630 |
24 |
11×1 |
|
11 |
21 |
|
FKQ320-4 |
1 |
2 |
|
1 |
40×8 |
160 |
rear |
650 |
24 |
11×1 |
|
11 |
21 |
|
FKQ320-4H |
1 |
2 |
|
1 |
40×8 |
160 |
rear |
650 |
24 |
11×1 |
|
11 |
21 |
|
FKQ480-5 |
1 |
2 |
1 |
1 |
40×12 |
240 |
rear |
890 |
32 |
11×2 |
|
15 |
21 |
|
FKQ480-5A |
1 |
2 |
1 |
1 |
40×12 |
240 |
rear |
890 |
32 |
11×2 |
|
15 |
21 |
|
FKQ640-6 |
1 |
3 |
1 |
1 |
40×16 |
320 |
rear |
1310 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ640-6A |
1 |
3 |
1 |
1 |
40×16 |
320 |
side |
1310 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ720-7 |
1 |
3 |
2 |
1 |
40×18 |
360 |
rear |
1510 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ720-7A |
1 |
3 |
2 |
1 |
40×18 |
360 |
side |
1510 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ800-6 |
1 |
3 |
1 |
1 |
40×20 |
400 |
rear |
1510 |
42 |
11×3 |
|
18.5 |
21 |
|
FKQ800-6A |
1 |
3 |
1 |
1 |
40×20 |
400 |
side |
1510 |
42 |
11×3 |
|
18.5 |
21 |
|
FKQ800-7 |
1 |
3 |
2 |
1 |
40×20 |
400 |
rear |
1510 |
42 |
11×3 |
|
18.5 |
21 |
|
FKQ800-7A |
1 |
3 |
2 |
1 |
40×20 |
400 |
side |
1510 |
42 |
11×3 |
|
18.5 |
21 |
|
FKQ800-8 |
1 |
3 |
2 |
2 |
40×20 |
400 |
rear |
1730 |
42 |
11×3 |
|
18.5 |
21 |
|
FKQ800-8A |
1 |
3 |
2 |
2 |
40×20 |
400 |
side |
1730 |
42 |
11×3 |
|
18.5 |
21 |
|
FK50-2C |
|
1 |
1 |
|
25×2 |
25 |
rear |
160 |
3.5 |
|
11 |
1.1 |
21 |
|
FKQ480-6 |
1 |
2 |
1 |
2 |
40×12 |
240 |
side |
920 |
32 |
11×2 |
|
15 |
21 |
|
FKQ560-6 |
1 |
3 |
1 |
1 |
40×14 |
280 |
rear |
1050 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ560-6A |
1 |
3 |
1 |
1 |
40×14 |
280 |
side |
1050 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ640-7 |
1 |
3 |
2 |
1 |
40×16 |
320 |
rear |
1510 |
42 |
11×2 |
|
18.5 |
21 |
|
FKQ640-7A |
1 |
3 |
2 |
1 |
40×16 |
320 |
side |
1510 |
42 |
11×2 |
|
18.5 |
21 |
