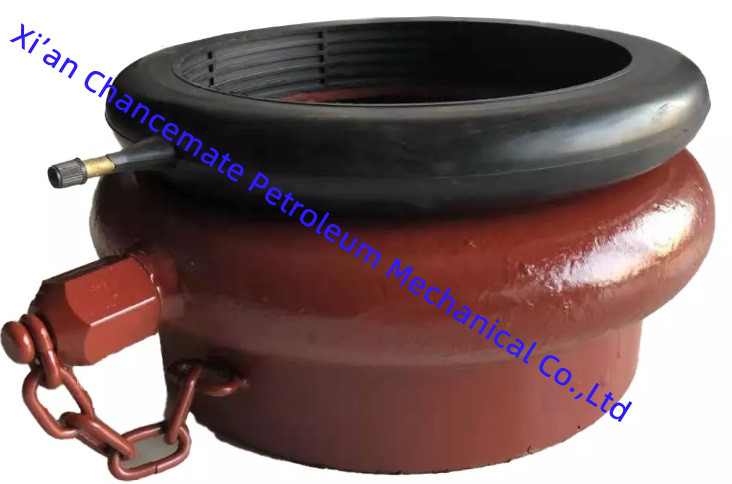

Picture of Air O Grip Union or Aero Union

Air Grip union  or Aero Union is widely applied in drilling fluid pipelines, with features of low-pressure, large pipe size, big pipe misalignment, frequent installation and uninstall. Especially, in connecting mud tanks, mud suction and return lines in solid control system. 150 psi maximum line pressure,

Air O Grip Union or Aero Union

Size：4”, 6”, 8”, 10”, 12”, 14”, 16”, 18” ，20”, 22”, 24”

Air O Union Complete Set

Air O Union Tube, can used for your type of Air O Union.

Recommended service:
Mud suction and return lines and low-pressure fluid lines

Air O Grip Union or Aero Union Features:
1. Shot of rig air inflates tube to seal around pipe
2. Fast, easy make-up without close alignment
3. Allows pipe expansion or misalignment without breaking the seal
4. No nuts, bolts, or wrenches required

Air Grip unions(Air-O-unions), usage is as belowings:

1. Medium available: mud, oil, water

2. Medium temperature: -45°C ~50°C

3. Reconversion time when deflated: 1-3 seconds.

 4. Medium pressure: 0.1-0.5Mpa

 5. Structure: steel shell and tube

 6. Material: shell for casting steel, NBR Tube
