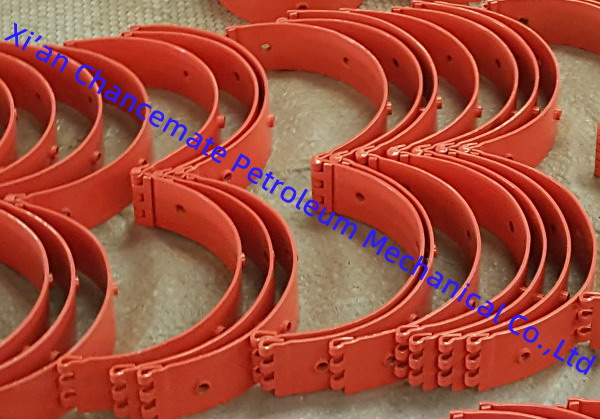

Hinged type stop collar screw nut lock
1.Application and characteristic
Position device (stop ring or stop collar), called position ring, stop circular, brake ring, etc.
It is used to limit the centralizer or cement basket slip on casing. It is divided into mobile
screw type, fixed screw type and buckle type.
2. Install and use method of Hinged type stop collar screw nut lock
a. When use mobile screw type stop collar, slip over the casing, tighten the screws using wrench.
b. When use fixed screw stop collar, put the collar around the casing, insert the screw, and
knock into screws by hammer.

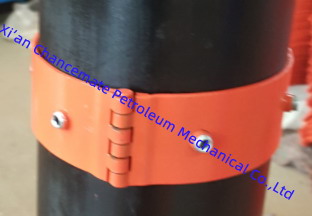

c. when install buckle type stop collar, buckle the stop collar onto the casing, lock with pin,
knock into the screws.
3. Property Parameters of Hinged type stop collar screw nut lock
Specifications,mm |
13 3/8″ |
10 3/4″ |
9 5/8″ |
8 1/8″ |
7 5/8″ |
7″ |
5 1/2″ |
5″ |
4 1/2″ |
ID,mm |
338 |
272 |
245 |
206 |
193 |
177 |
139 |
126 |
114 |
OD,mm |
350 |
284 |
257 |
218 |
285 |
189 |
151 |
138 |
126 |
Holding Force,KN |
40 |
40 |
40 |
30 |
30 |
30 |
30 |
24 |
24 |
Hinged type stop collar screw nut lock
