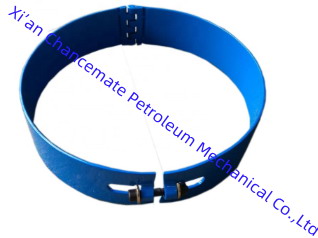

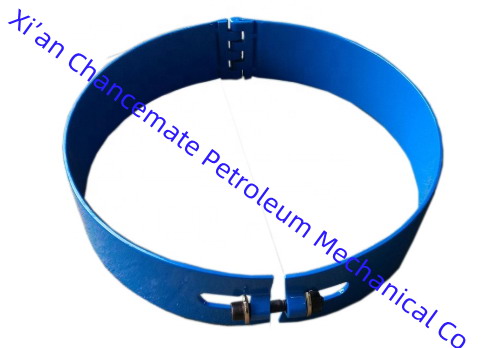

Hinged bolted stop collar
introduction of stop collar:Hinged bolted stop collar
>>The Hinged Spiral Nail Stop Collar comprises of two parts and hinged at two ends making an angle of 180 degree.
>>This hinged Stop Collar has an internal groove and these are available in 4 1/2 " to 20 " sizes+ any sizes in which a spiral locking pin is inserted.
>>This tightens the collar to the casing firmly.
>>It can be latched on the casing pipe without having to be slipped on.
>>This cementing product is easy to install and most effective where annual low clearance received.
>>The stop collars are coated with to polyester powder which prevents it from getting rust.
Property Parameters of stop collar
Hinged bolted stop collar
|
Specifications,mm |
13 3/8″ |
10 3/4″ |
9 5/8″ |
7 5/8″ |
7″ |
5 1/2″ |
5″ |
4 1/2″ |
|
ID,mm |
338 |
272 |
245 |
193 |
177 |
139 |
126 |
114 |
|
OD,mm |
350 |
284 |
257 |
285 |
189 |
151 |
138 |
126 |
|
Holding Force,KN |
40 |
40 |
40 |
30 |
30 |
30 |
24 |
24 |
Hinged bolted stop collar
