Xi’an Chancemate Petroleum Mechanical Co.,Ltd

Float Collar and Float Shoe

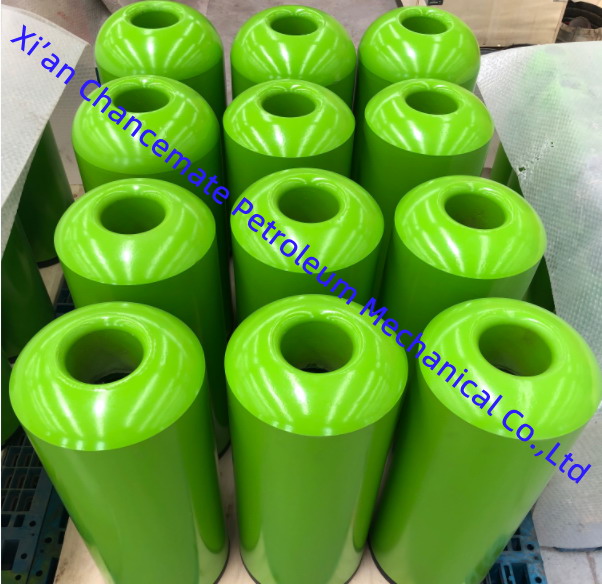

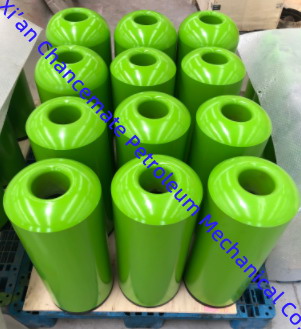

API 5CT Float Shoe

Applications:

Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it’s lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it’s displaced. It’s a receptacle to cement plug.

API 5CT Float Shoe

Feature:

1. All inner parts are made of easily drillable aluminum alloy.
2. The device can be connected directly to the casing of the same type.
3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
4. Valve seat and valve disk can effectively prevent grout from flowing back.
5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.

API 5CT Float Shoe

Technical Parameters:

API 5CT Float Shoe

Materials: API casing grades, like J55, K55, N80, P110, L80, etc

Connections: LTC, STC, BTC

Premium connections are available upon request.

Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
