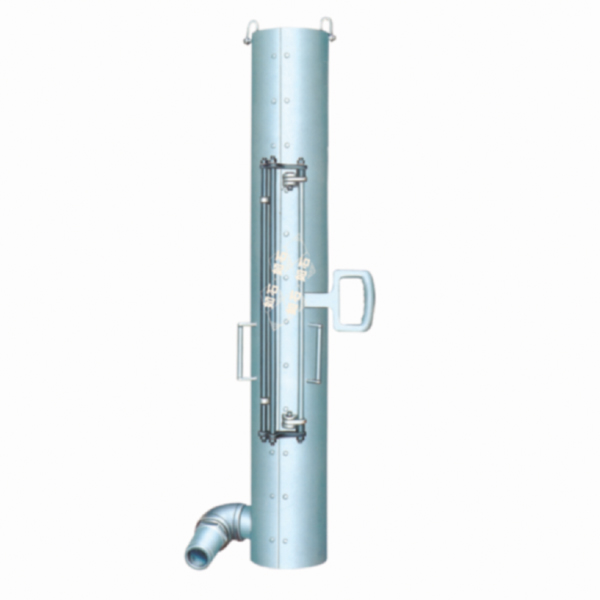

FP sealed anti-spraying boxes

Product Name:

FP sealed anti-spraying boxes

No. :

Product Description

FP sealed anti-spraying boxes is widely used to prevent mud spraying and contaminating the drill platform during breaking-out and making-up of drilling tools.It is simple, safe, reliable with long service life.

Model			FP-51/2			FP-51/2Ⅱ
Applicable range	mm		88.9mm～177.8mm
Applicable range	in		31/2″～7″
Drill pipe size			51/2″ Body-body	5″ Body-body	41/2″ Body-body		4″ Body-body	31/2″ Body-body
Drill pipe size			51/2″ Body-coupling	5″ Body-coupling	41/2″ Body-coupling		4″ Body-coupling	31/2″ Body-coupling
Flow sub			R4″			NPT3
Size		mm	1840×800×510			1125×700×640
Size		in	73×32×20			44×27.5×25
Weight		kg	140			100
Weight		lb	308			220
