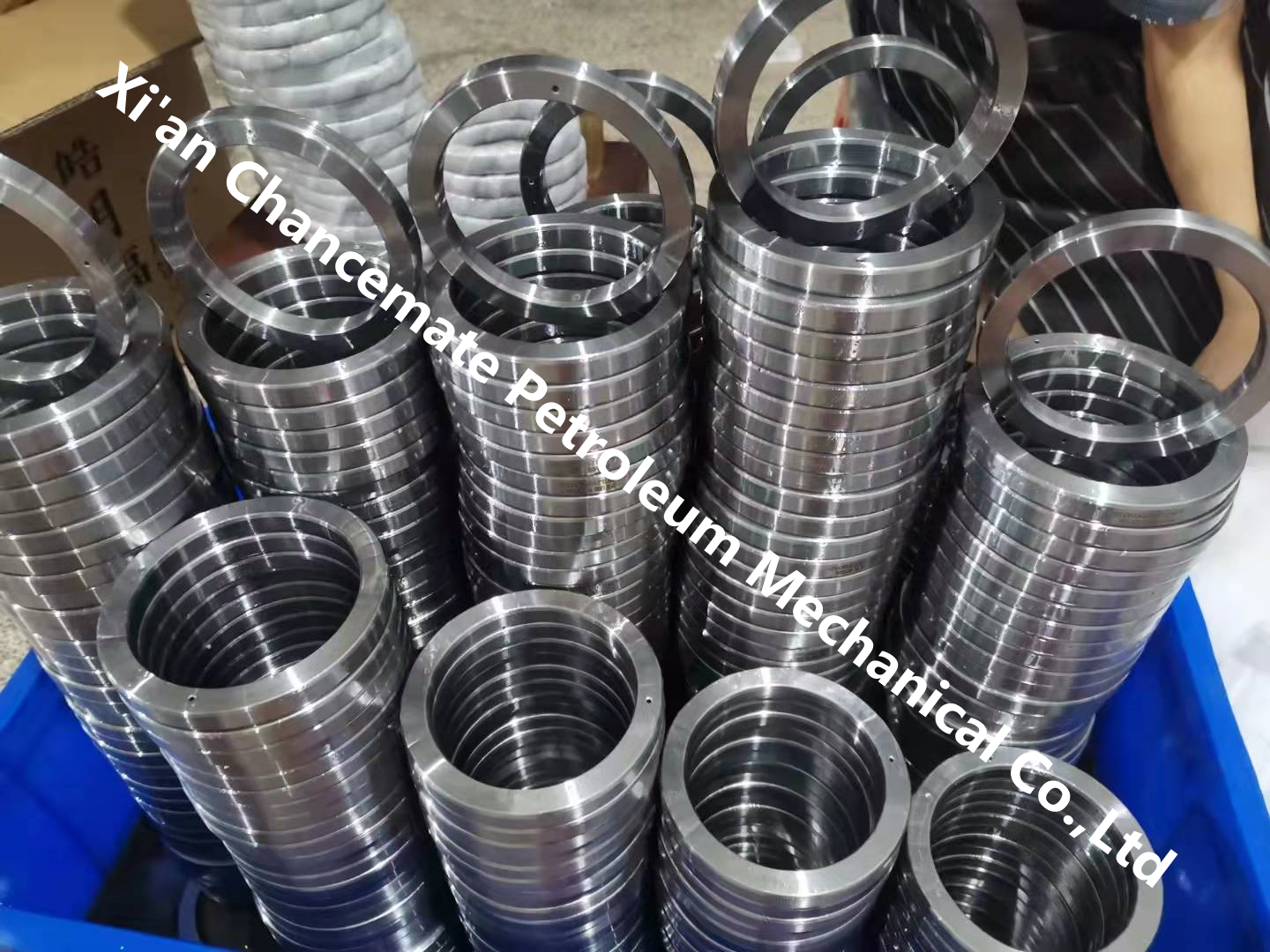

    BX ring gasket SS316
    Product Name:
    BX ring gasket SS316
    No. :
    :
    :

    Product Description

     BX ring gasket SS316

     BX type RTJ ring gasket is manufactured in accordance with both API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges.
     BX ring gasket SS316
    BX ring gasket is a pressure-energized adaptation of the standard type R ring gasket. The BX ring gasket is designed to fit the same groove design as a standard type R ring gasket, making the joints interchangeable. The modified design uses a pressureenergized effect that improves the efficiency of the seal as the internal pressure of the system increases.

    Pressure: 5,000-20,000 PSI
     BX ring gasket SS316


    Designs are also available for Subsea applications.



    RING

    NO.

    PRESSLURE ALASSES, API 6BX

    OUTSIDE

    DIAMETER

    OF  RING

    OD

    HELCHT

    OF

    RING

    H

    WIDTH

    OF

    RING

    A

    HOLE

    SIZE

    D

    GASKET

    WELGHT.

    Ibs.

    for APL 66x flanges

    2000

    3000

    5000

    10000

    15000

    20000

    Bx150

    -

    -

    -

    1 11/16

    1 11/16

    -

    72.19

    9.30

    9.30

    1.59

    0.295

    Bx151

    -

    -

    -

    1 13/16

    1 13/16

    1 13/16

    76.40

    9.63

    9.63

    1.59

    0.337

    Bx152

    -

    -

    -

    2 1/16

    2 1/16

    2 1/16

    84.68

    10.24

    10.24

    1.59

    0.425

    Bx153

    -

    -

    -

    2 9/16

    2 9/16

    2 9/16

    100.94

    11.38

    11.38

    1.59

    0.632

    Bx154

    -

    -

    -

    3 1/16

    3 1/16

    3 1/16

    116.84

    12.40

    12.40

    1.59*

    0.875

    Bx155

    -

    -

    -

    4 1/16

    4 1/16

    4 1/16

    147.96

    14.22

    14.22

    1.59

    1.22

    Bx156

    -

    -

    -

    7 1/16

    7 1/16

    7 1/16

    237.92

    18.62

    18.62

    3.18

    4.14

    Bx157

    -

    -

    -

    9

    9

    9

    294.46

    20.98

    20.98

    3.18

    6.55

    Bx158

    -

    -

    -

    11

    11

    11

    352.04

    23.14

    23.14

    3.18

    9.60

    Bx159

    -

    -

    -

    13 5/8

    13 5/8

    13 5/8

    426.72

    25.70

    25.70

    3.18

    14.41

    Bx160

    -

    -

    13 5/8

    -

    -

    -

    402.59

    23.83

    13.74

    3.18

    6.75

    Bx161

    -

    -

    16 3/4

    -

    -

    -

    491.41

    28.07

    16.21

    3.18

    -

    Bx162

    -

    -

    16 3/4

    16 3/4

    16 3/4

    -

    475.49

    14.22

    14.22

    1.59

    -

    Bx163

    -

    -

    18 3/4

    -

    -

    -

    556.16

    30.10

    17.37

    3.18

    -

    Bx164

    -

    -

    -

    18 3/4

    18 3/4

    -

    570.56

    30.10

    24.59

    3.18

    -

    Bx165

    -

    -

    21 1/4

    -

    -

    -

    624.71

    32.03

    18.49

    3.18

    -

    Bx166

    -

    -

    -

    21 1/4

    -

    -

    640.03

    32.03

    26.14

    3.18

    -

    Bx167

    26 3／4

    -

    -

    -

    -

    -

    759.36

    35.87

    13.11

    1.59

    -

    Bx168

    -

    26 3／4

    -

    -

    -

    -

    765.25

    35.87

    16.05

    1.59

    -

    Bx169

    -

    -

    -

    5 1/8

    -

    -

    173.51

    15.85

    12.93

    1.59

    -

    Bx170

    -

    -

    -

    6 5/8

    6 5/8

    -

    218.03

    14.22

    14.22

    1.59

    -

    Bx171

    -

    -

    -

    8 9/16

    8 9/16

    -

    267.44

    14.22

    14.22

    1.59

    -

    Bx172

    -

    -

    -

    11 5/32

    11 5/32

    -

    333.07

    14.22

    14.22

    1.59

    -

    BX303

    30

    30

    -

    -

    -

    -

    852.75

    37.95

    16.97

    1.59

    -

    Send your inquiry to email: sales@chancematewellcontrol.com, we are waiting for you.
