ASME B16.20 Ring Gasket

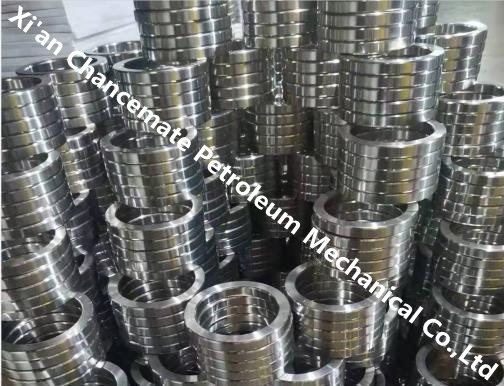

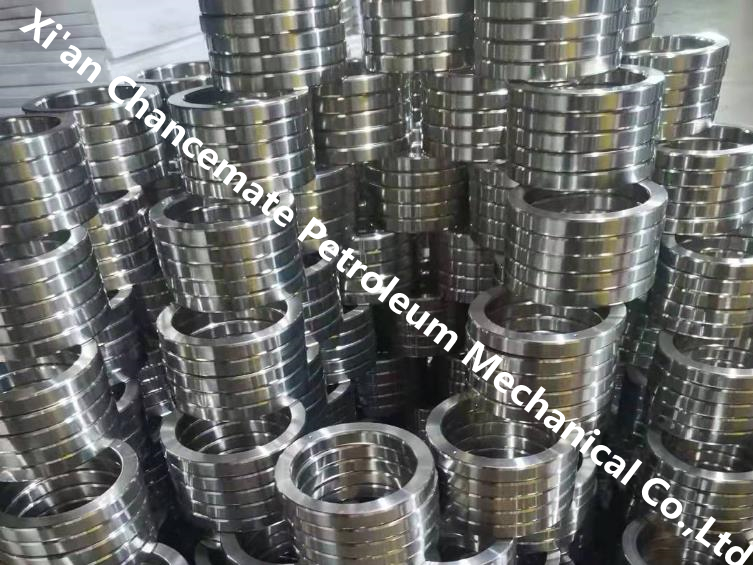

Ring Gasket we manufacture include R Type, BX Type, RX Type
Material: SS 316
Standard: API 6A and ASME B16.20.
R Type Gasket
The Ring Type Joint Gasket is initially developed for high pressure/ temperature applications found in the petroleum industry and is primarily used in the oilfield on drilling and completion equipment.
However, today this product range can also be found on valves and pipe work assemblies, along with some high integrity pressure vessel joints.
Style R gaskets are manufactured in accordance with both API 6A and ASME B16.20 to suit API 6B and ASME/ANSI B16.5 flanges. Available in both oval and octagonal configurations, both types are interchangeable on modern octagonal type grooved flanges.
Pressure: 2,000-5,000 PSI
Oval cross-section Industry Ring Joint Gaskets and Octagonal cross section Ring Joint Gaskets are used in pressures up to 10,000 psi
The hardness of the ring gasket should always be 30% lesser than the hardness of the flanges to prevent flange deformation
Dimensions and Tolerances for Ring Joint Gaskets and Grooves are covered in API 6A and ASME B16.20.
We stock a wide range of sizes and materials ready for immediate shipment from Ring Numbers R11 to R105.
Ring joint gasket is machined from solid metal in a variety of shapes according to API 6A & ASME B16.20 standards,it’s designed for high pressure ,high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to with stand exceptionally high assembly loads over a small area, thus producing high seating stresses.Ring type Joint Gaskets are designed to seal by "initial line contact" or wedging action between the mating flange and the gasket. By applying pressure on the seal interface through bolt force, the softer metal of the gasket flows into the imperfections of the harder flange material, creating a very tight and efficient seal.
The contact face is in oval shape. It provides a high reliabililty seal. These gaskets are manufactured in accordance to API 6A of ASME B16.20 to suit API613 and ASME/ANSI B16.5 Flanges. Fits the round and flat bottom ring groove flange.
